Capsule Filling Machine
Capsule Filling Machine
  • Capsule Filling Machine
Capsule Filling Machine
description
This machine is  a filling and closing machine for hard gelatine capsules. The machine is suitable for a wide variety of capsules. Due to its modular structure, the machine can fill capsules with powder and pellets in different combinations. Email us at leadingpackingmachinery@gmail.com


Capsule Filling Machine / Capsule Filler

Our Machine can help you to fill capsules like below sample photo.

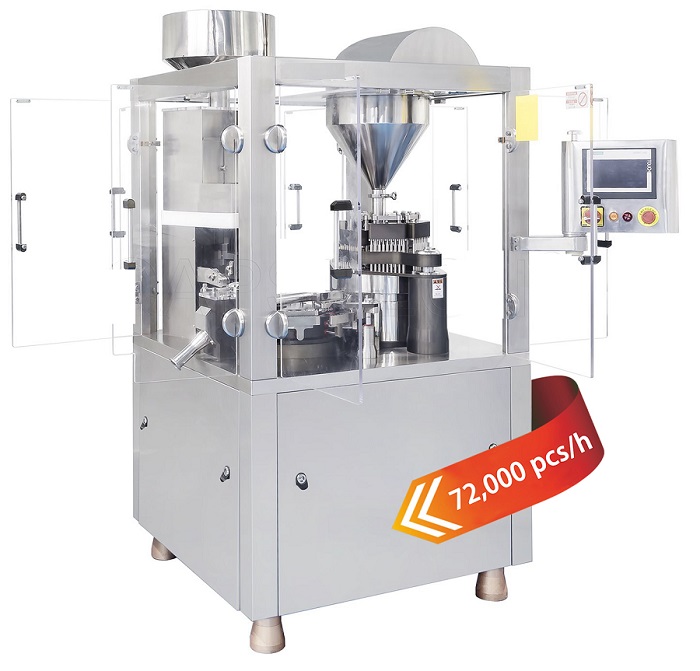

1. Machine Photo:






2. Product Paramenters
C Type Automatic Capsule Filling Machine
Model
CF-400C
CF-800C
CF-1200C
CF-2000C
CF-3500C
Capacity
24000caps/h
48000caps/h
72000caps/h
120000caps/h
210000caps/h
NO.of
3
6
9
18
26
Capsule Size
000#-5# and safety capsule
Power
380/220V 50/60Hz 5kw
380/220V 50/60Hz 5kw
380/220V 50/60Hz 6kw
380/220V 50/60Hz 10kw
380/220V 50/60Hz 12kw
Dimensions
1080*1240*1950mm
1080*1240*1950mm
1180*1340*1980mm
1500*1350*2100mm
1386*1156*2100mm
Net Weight
800KG
800KG
1000KG
1600KG
2500KG
SNR
<75dB
<75dB
<75dB
<75dB
<75dB
D Type Automatic Capsule Filling Machine
Model
CF-1200D
CF-3000D
Capacity
72000caps/h
165000caps/h
NO.of mould bores
9
21
Capsule Size
000#-5# and safety capsule
Power
380/220V 50/60Hz 7KW
380/220V 50/60Hz 11KW
Dimensions
980*980*2100mm
1610*1210*2180mm
Net Weight
1000KG
2200kg
SNR
<70dB
<70dB
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.)


3. Machine Running Video

1) Automatic Capsule Filler

2) Semi-automatic Capsule Filler




4. Features:

1. The machines are simple and easy to operate, clean and maintain at very low costs.

2. It has adjustable and flexible settings that will improve the levels of capsule filling and production.

3. Most parts of the machine are enclosed tightly thus preventing the entry of dust and other foreign materials.

4. Since the filling process is automatic, the machine saves time and energy through a fast filling process.

5.The machine also comes with automatic sensors that will warn you of any imminent danger in the machine operations.

6. The sensors will also assist in the predetermination of the filling levels in different hoppers.

7. It has different parts that will maintain the integrity of the capsules leading to minimal or no damages on capsules.

8. The filling process is precise and accurate leading to proper filling levels of all the capsules.

9. You can easily integrate the machine properly with other machines for a complete encapsulation process.

10. The machine is also compliant to the right quality standards such as CE and cGMP that ensures high quality standards.

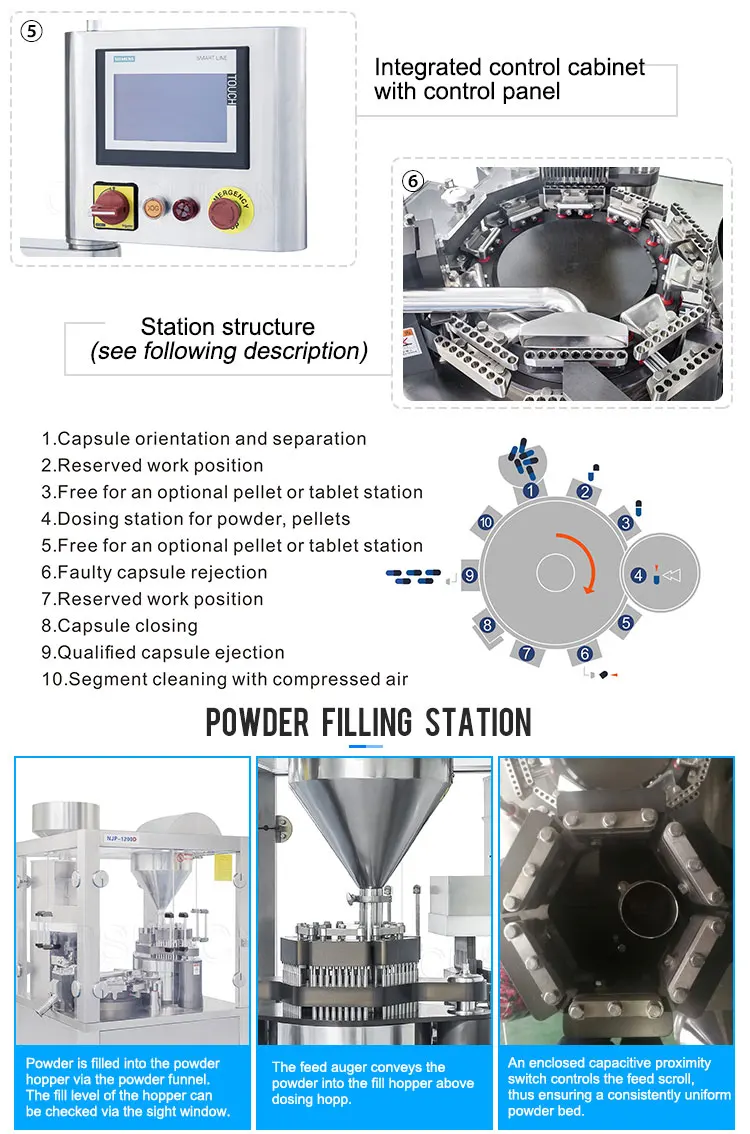

5. Machine Structure Introduction

Details Images


We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
