High Speed Tube Filler
description
The tube filler can connect with automatic tube unscrambler and cartoner and film wrapper to form a production line, such as toothpaste filling line or cream or facial cleanser tube filling line. See videos below.
Below information is for tube sealing machine for different products, please kindly inform us the product you are going to fill and the speed you need, we will recommend machines accordingly, we have medium speed and high speed tube filler, below is the high speed tube filler introduction information.
We have filling machines for filling cream, essential oil, chocolate, shampoo, body gel, shower gel, ointment packed in plastic or compound or metal tubes, or packed in bottles and jars, this web page is introducing packing machine for products packed in tubes.
For filling products into bottles, please read the end of this webpage to see the other suitable machines recommended.
Machine Photos:

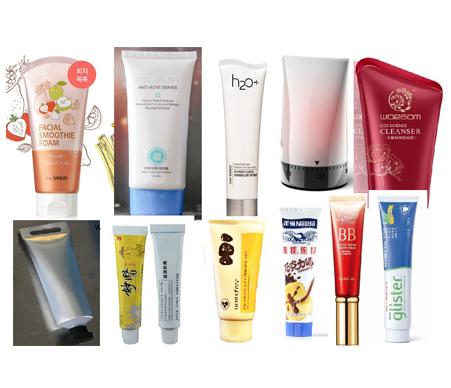

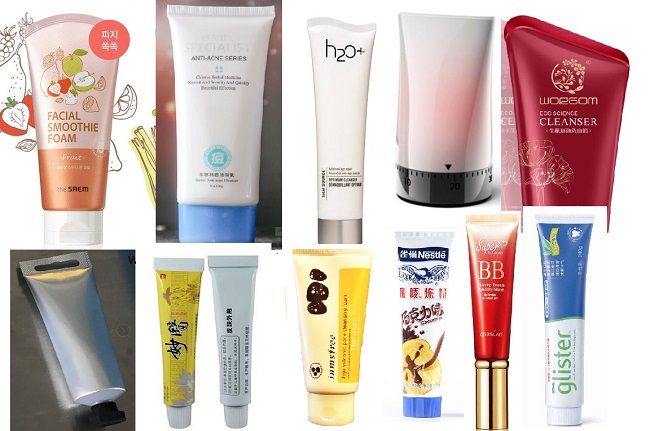

Below is the sample tubes that our tube filler can fill:

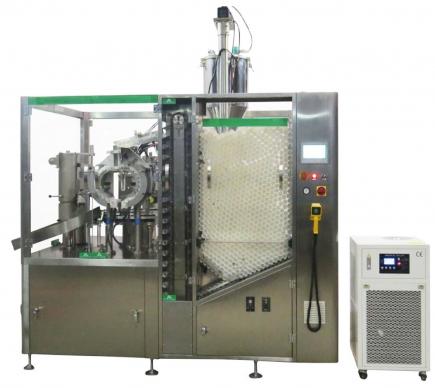

High-speed Tube Filler (double work station) with 2 filling heads and a set of double-work station tube feeding system.
1. Technical Parameters
Maximum Operation speed：160 tubes/minute
Suitable tube length：40-250mm
Suitable tube diameter：10-50mm
Filling volume：10-300ml
Filling precision：≦±0.5﹪
Power supply：can be made according to client’s requirement
Working pressure：0.6 Mpa
Capacity of hopper：70L
Power of hot-wind generator：3Kw×2
Consumption of compressed air： 1.2 m3
Dimensions：2900×1800×2400mm
2. Features
1). The production speed reach 160 tubes/minute maximum, high production output, saves labor cost and production cost, raises the revenue for clients.
2). Ideal tube filler for clients with high production outputs, with different kinds of tubes filling needs, the changeover of parts is quick and simple.
3). All English language in touch screen operation, convenient for changing the settings for operation.
3. Optional Devices
◆Externally allocated refrigerator
◆Special-shaped sealing devices (wave type sealing device, arc sealing device, T-shaped punching hole sealing device, metal pipe folding and sealing device)
◆Jacket and barrel heat preservation device
◆Blending device inside the barrel
◆Blowing and sucking type tube cleaning device
◆Nitriding device before and after filling
◆Automatically controlled material feeding device (pump)
◆Finished tube conveyor
Machine Running Video:
The High Speed Tube Filling Line Consists of Below Machines:
Tube unscrambler + Tube Filler Sealer + Cartoner + Carton Film Over Wrapper
This tube filling production line can fill products such as cream, ointment, toothpaste, foundation, BB Cream, lip gloss, condensed milk, chocolate, facial cleanser, cleansing foam, sunscreen, sun block, shampoo, shower gel, eye cream, hand cream, etc. The products can be filled is not limited to the listed.
The client can choose this whole tube filling line or choose either machine the client needs from the filling line, we can quote accordingly.
The tube filling line can also connect with automatic carton erector, carton filler, carton sealer, carton strapping machine, carton pallet placer to form a complete packing line, if the client also need these machines, please contact us for more details.
Our Tube Filler can seal all kinds of tubes with different sealing ends, see the number two tube photos, we list some of the types of sealed tubes from the tube filler, we can do more types of tubes. It can fill and seal plastic tubes, aluminum plastic compound tubes and metal tubes (optional).
Product Filling Range:
Suitable for filling cosmetics, skin care, personal care, pharmaceutical, food, adhesives, etc. in the tubes and the machine complies with the standard of cGMP.
The suggested work flow is as follows:
1. The operator can pour the tubes into the automatic tube unscrambler. The tube unscrambler will automatically unscramble the tubes and change the direction of the tubes suitable for directly feeding tubes for the tube filler for filling and sealing tubes.
2. The tube filler will fill product into the tube and seal and emboss batch number to the tube end, and then the tube can be conveyed to the cartoner to be packed into retail box, and then conveyed to the film wrapper to wrap film on the retail box.
We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.
As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
Automatic tube unscrambler video:
Automatic cartoner video:
Automatic cartoner and film wrapper video:
We have filling machines for filling cream, essential oil, chocolate, shampoo, body gel, shower gel, ointment packed in plastic or compound or metal tubes, or packed in bottles and jars, this web page is introducing packing machine for products packed in tubes.
If the client needs to pack in bottles, cans and jars, please click below two products' photos to go to the skincare filling machine and food filling machine.

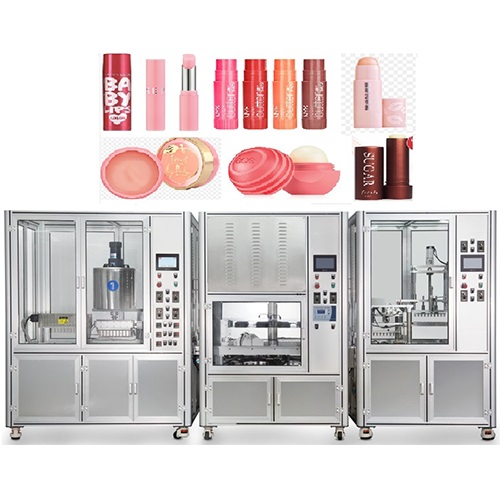

Skincare filling machine (click below photo to go to the skincare filling machine):
