Injection Moulding Machine
description

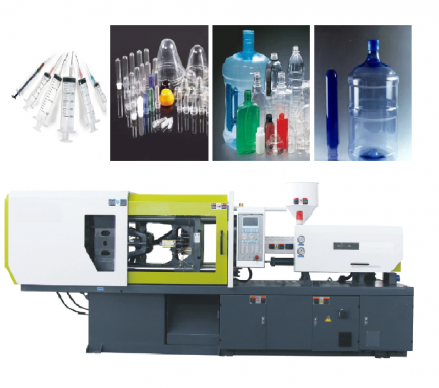

Our plastic injection molding machine can produce all kinds of plastic parts, caps, tubes, syringes, bottles, barrels, such as for materials like PP, PC, PET, PVC, HDPE/PP, ABS/PP, PE/PP, etc.
Technical Parameter of Plastic Injection Molding Machine
Technical Specifications:
IM-4800 | |||||
INJECTION UNIT | |||||
Item | UNIT | VALUE | |||
C-screw Diameter | mm | 70 | 75 | 80 | |
Screw L/D Ratio | L/D | 22.6 | 21 | 19.7 | |
Theoretical Shot Volume | cm^3 | 1346 | 1545 | 1758 | |
Show Weight(Ps) | g | 1225 | 1406 | 1600 | |
Injection Pressure | Mpa | 201 | 175 | 154 | |
Theoretical Injection Rate(Ps) | g/s | 370 | 423 | 484 | |
Plasticizing Capacity | g/s | 60.4 | 71.4 | 83.7 | |
Screw Torque | N.m | 3490 | |||
Max. Screw Rotate Speed | r/min | 150 | |||
Injection Stroke | mm | 350 | |||

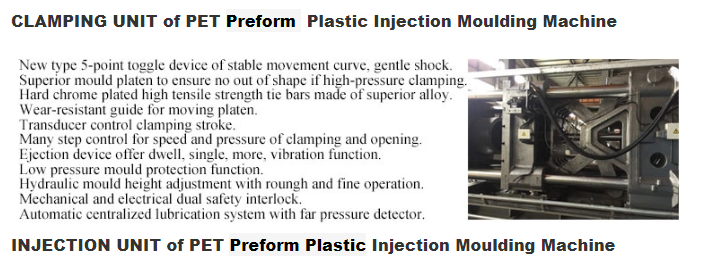

Clamping Unit | |||||
Item | UNIT | VALUE | |||
Max. Clamping Force | KN | 4800 | |||
Max. Opening Stroke | mm | 770 | |||
Space Between Tie Bars | mm | 760×760 | |||
Mould Height | mm | 280~790 | |||
Max. Daylight | mm | 1560 | |||
Ejector Force | kn | 113.4 | |||
Ejector Stroke | mm | 195 | |||
Ejector Quantity | pc | 13 | |||
Other | |||||
Item | UNIT | VALUE | |||
Pump Motor Power | KW | 45 | |||
Pump Pressure | Mpa | 16 | |||
Heating Power | KW | 28 | |||
Heating Zone | 5 | ||||
Size | m | 7.5×2.1×2.45 | |||
Net Weight | t | 20 | |||
Oil Tank Capacity | L | 850 | |||
International Designation | 4200-2710 | ||||

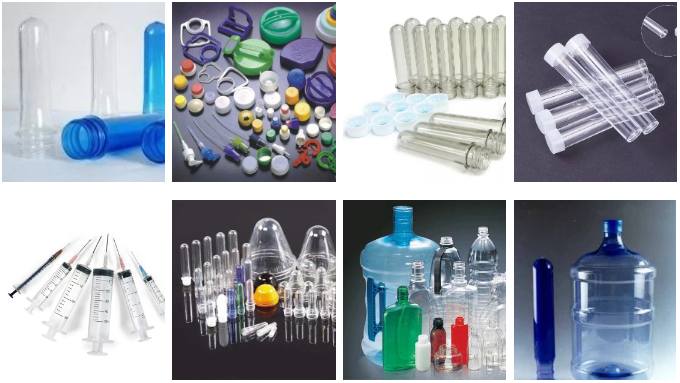

Applications:
Machine Running Video:
Machine Description:
We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.
As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
