-- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
Email us at:leadingpackingmachinery@gmail.comSyringe / Suppository Filler
Suppository Production Line
description
Introduction:
This machine is used to produce the suppository. It has a stable and efficient manufacturing process, Shell making,Filling, freezing, Sealing and other production processes to complete the whole process. The production capacity vary from 1,000 to 23,000 pcs/hour.

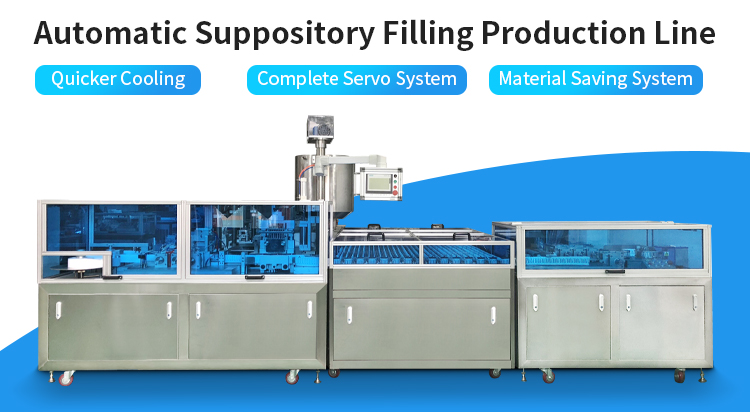

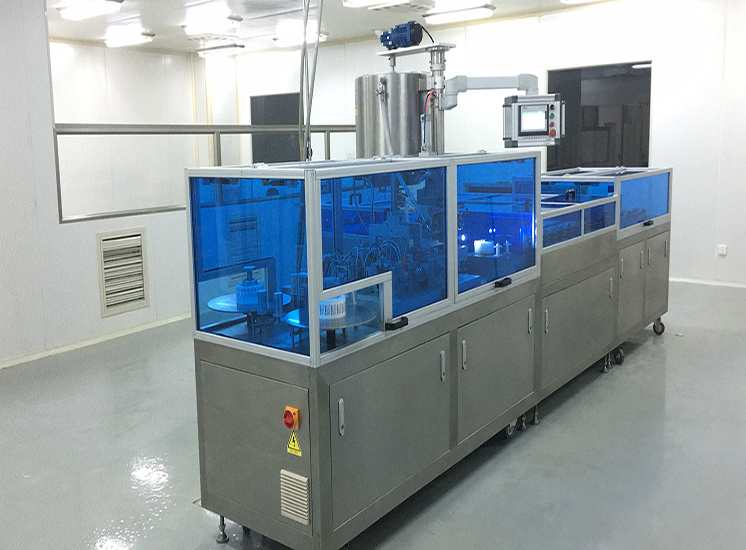

Automatic Suppository Filling And Sealing Production Line
Introduction:
The automatic suppository production line is suitable for the production of special shapes of slugs such as bullet-shape, torpedo shape and duckbill shape, which can meet the production of suppositories of various shapes. (Make a mold according to the sample or requirement.)
From the beginning of the automatic suppository shell molding, to the filling station of the liquid medicine, the recip-rocating cooling setting (liquid conversion solid state), the continuous sealing, the batch number, the finished product cutting (the number of cutting particles is arbitrarily set on the touch screen,1-10 Free cutting)
Technical Parameters
Name | Laboratory Automatic Suppository Production Line | Continuous Automatic Suppository Production Line | |
Model | CL-1LS | CL-3LS | CL-7LS |
Output | 1,000-2,000 pcs/h 5,000-6,000 pcs/h | 10,000-12,000 pcs/h 15,000-18,000 pcs/h 18,000-23,000 pcs/h | |
Stirring tank capacity | 20L/30L | 70L | |
Air consumption/min | 1.5m3/min | 1.6m3/min | |
Total power | 4KW/5KW | 7.5KW/9.5KW | |
Machine Weight | 500kg/1000kg | 2000kg/2500kg | |
Single Dosage | 0.5-5g | ||
Dosage Allowed | <±2% | ||
Packaging Film | PVC/PE Thickness: 0.15-0.18mm | ||
Work pressure | ≥0.7MPa | ||
Water consumption | 50kg/h(recycle use) | ||
Working voltage | 3 phase, 380V(customized) | ||
Center distance | 17.4mm | ||
Shape | The bullet, torpedoes, duck bill and other various shapes | ||
Application | Synthetic fatty acid glycerides, glycerin, gelation and polyethylene glycol, etc. | ||
Overall size | CL-1LS L2300 x W1200 x H1800mm | CL-3LS L3578 x W1388 x H1828mm | CL-7LS L5839 x W1456 x H2115mm |

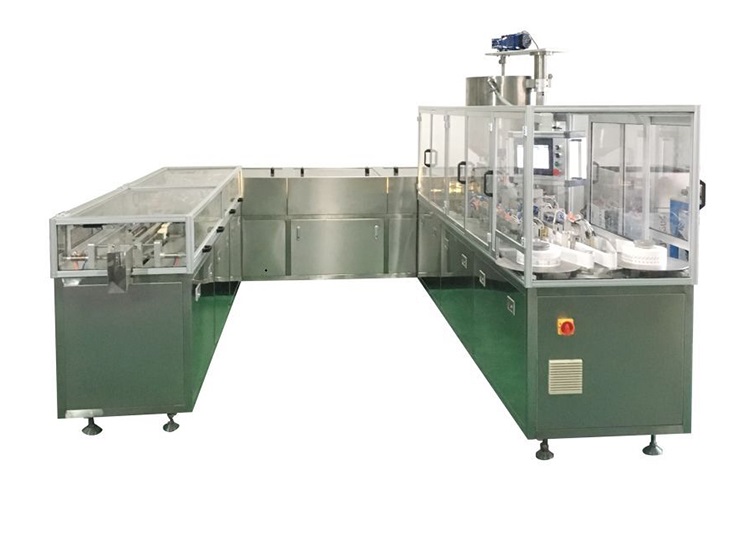

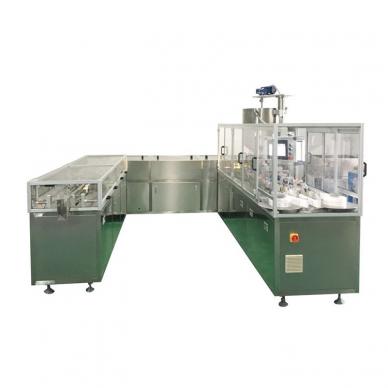

We have different kinds of suppository production lines, such as U type, Linear type suppository filling production line, etc., please inquire to us with your need, we will recommend machines suitable for you accordingly.

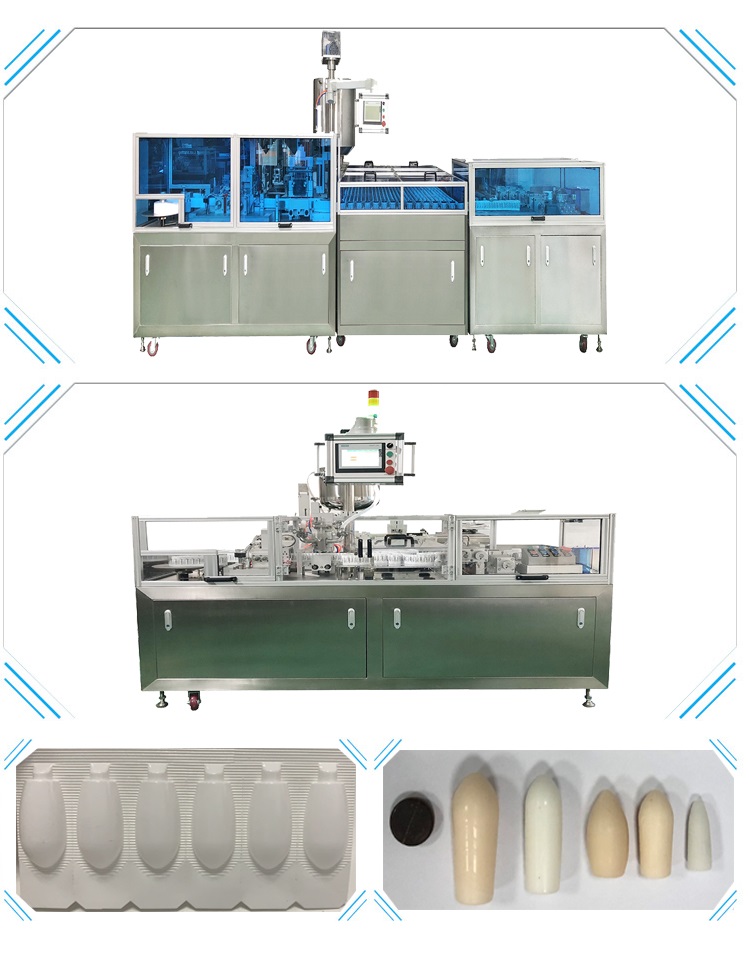

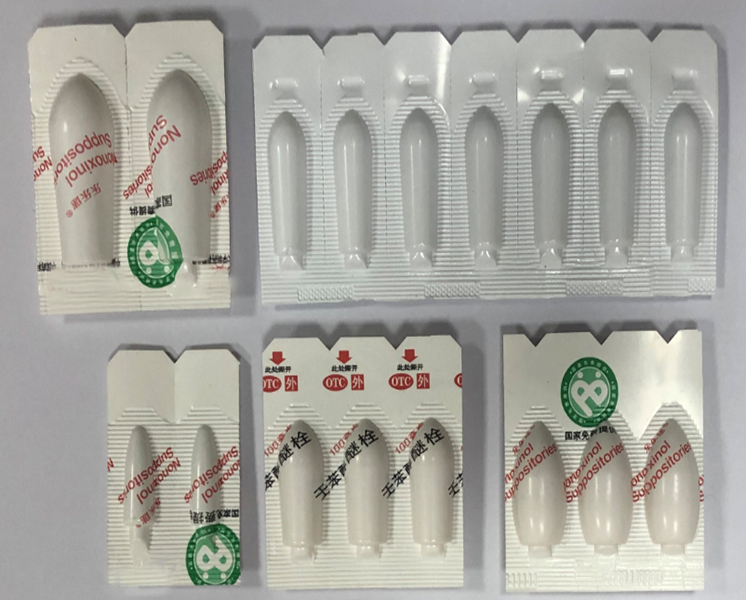

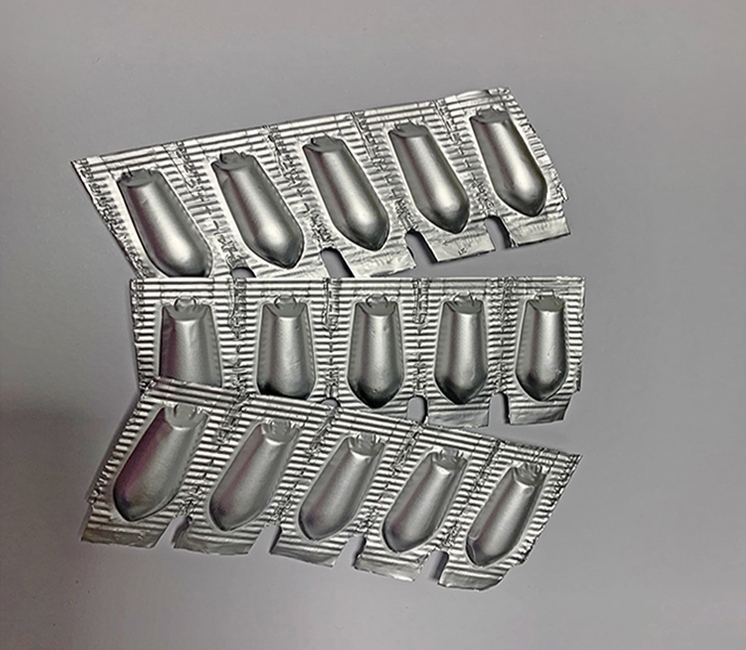

Samples made by our suppository filling production line are like below but not limited as below, please contact us with your inquiry, we will recommend suitable machines for you, we have most machines you need.
PLC checking function: Through PLC online checking function to self-checking and alarm for running stoppage, and show the reason of stoppage in order that the operator remedy it in time.
Filling part within free static electricity system.
Agitation vat speed adjustment system
Cooling speed adjustment system
Cutting gains speed adjustment system
Notice: end product grains can be set 4/5/6/7gains. The machine can product PVC/PE
Product Highlights
01. The insertion type linear perfusion mechanism
02. Production capacity
-- The production capacity is 4500-5000 grain/hour.
-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

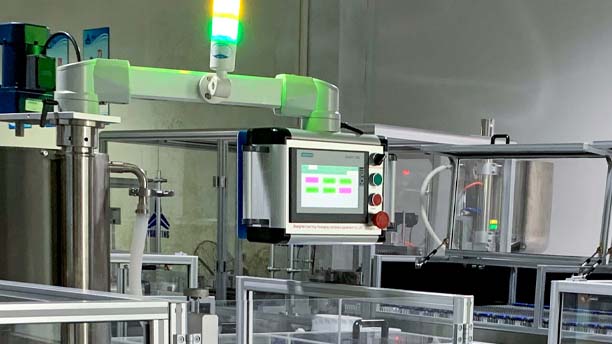

03. Siemens PLC control system
-- The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment,
accurate temperature control and smooth operation.
accurate temperature control and smooth operation.

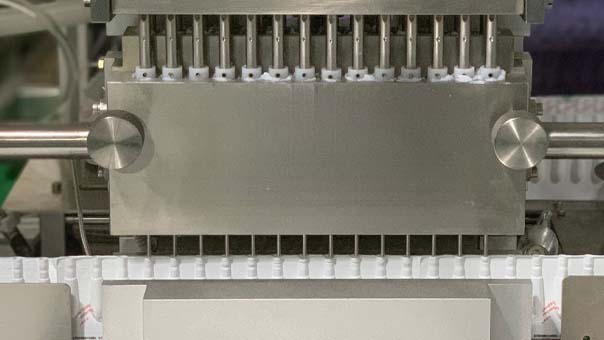

04. Servo high precision filling system
-- Filling, freezing, sealing and other
production processes are fully automatic.
-- Filling piston by servo motor with stroke
rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!

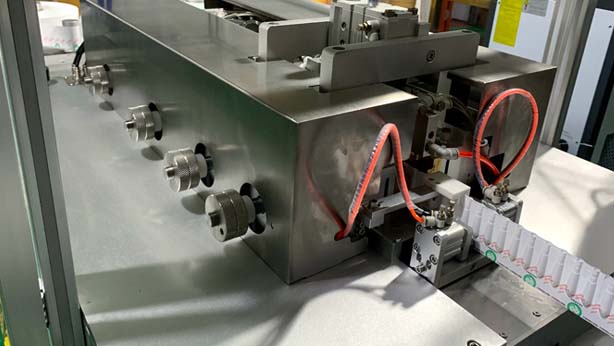

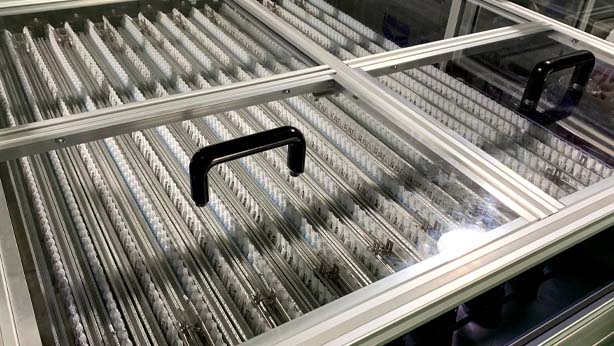

05. exclusive circulation of water cooling system
-- latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the
medicine is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.
medicine is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.

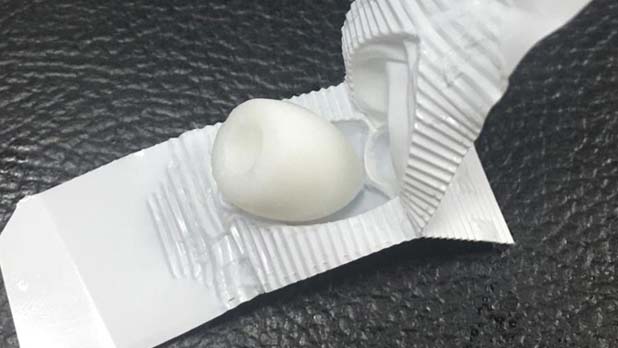

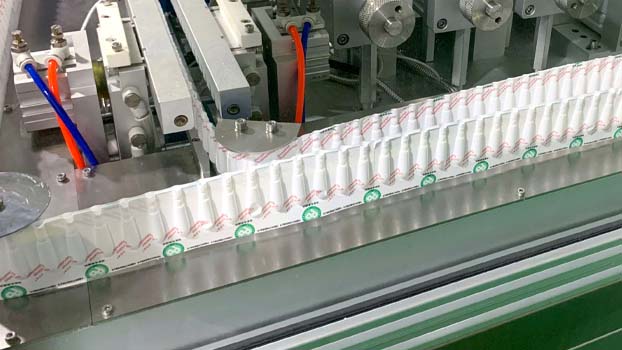

06. Finished product
The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.
Packing & Delivery
