Our Essential oil filling line use dropper glass bottles, we have 3 in 1 essential oil filling machine, it can have single work station or double work stations to achieve speed of  2000 bottles per hour for single station to 4000 bottles per hour for double work stations. It has work stations of filling, dropper placer, capper.

They have different flavor from different flowers, clients gets the flavor and label different bottle flavors with different labels. See the similar samples bottles below, the machine can be designed in single work station and double work station to achieve different production speed need.

We also have solid cream filling line, solid cream filling machine, liquid cream filling line, liquid cream filling machine.

You can ask us, we will send you detailed specification tailored for your product and your production speed need.

They are also 3 in 1 filling machine, can have single work station or double work station, to achieve working speed of 2000 bottles per hour for single station to 4000 bottles per hour for double work stations.

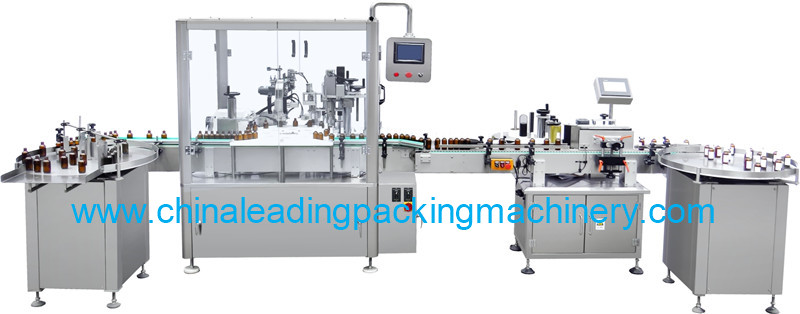

Automatic Liquid, Cream, Liquid Foundation Filling Line

Pictures of machine

Machine specification and features:

The cream, liquid, Liquid Foundation filling, capping and labeling line has the functions such as automatic screw type bottle feeding, bottle detecting (no bottle no filling, no bottle no cap loading ), filling, cap loading, capping, labeling automatically.

Filling volume: 1~250ml (we can custom make the machine to be suitable for different filling volume needs of clients. the client can fill different volumes  of bottles with easy adjustments of the machine.)

Filling speed: 40~60 bottles/min

If the client need, we can make double work station to increase the speed.

Filling precision: ≥99％

Cap loading success rate: ≥99％

Main machine power: 1KW 220V stepless shift

It is also suitable for cream, oil, liquid filling with easy changover of the filling head, hopper and capping head.

We did not take a video of liquid foundation filling machine, so see below similar bottle filling video. The machine’s design and structure is similar, with some difference for different packing solution the client needs.

For different filling product and bottle, we will design with different filling method according to product, such as with or without hopper for liquid or cream, different capping head for different cap type, etc. Therefore, please contact us with your container info, and filling volume, and product, production speed needed, we will design the machine suitable for your need.

你好好好好

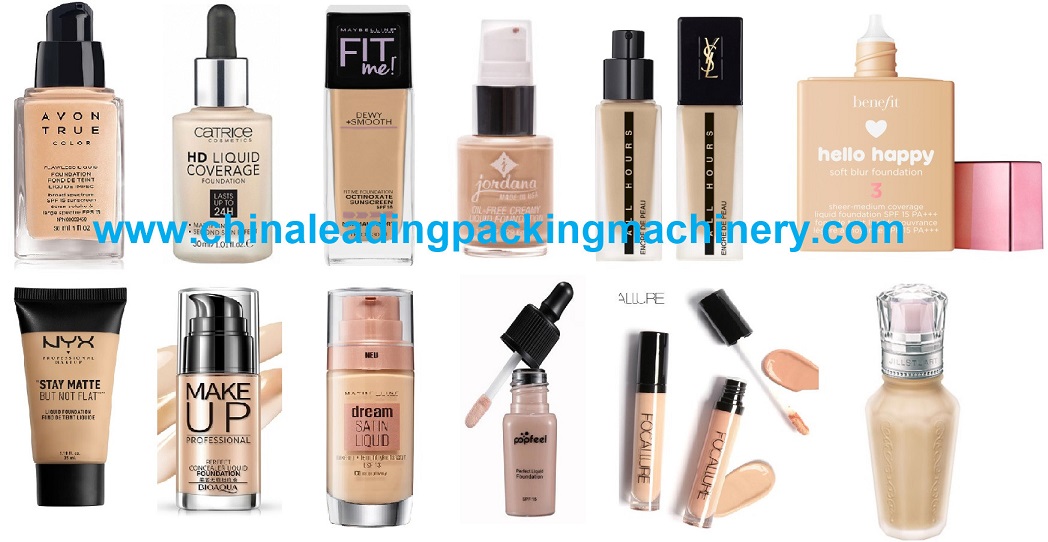

See some of the bottle examples that are filled by our machines below, they are just part of the bottles can be filled, not limited to below photo listed, please contact us with your bottle photo and filling product, production speed needed, we will supply you with an ideal filling line solution for your need.

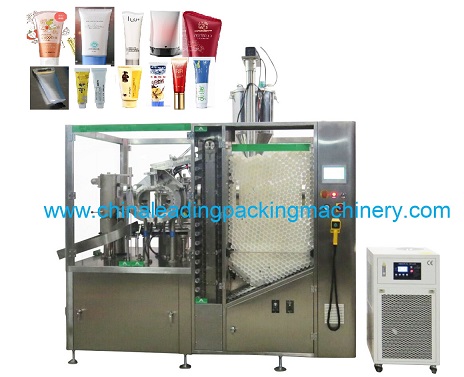

Tube Filler for liquid foundation packed in tubes:

There is also liquid foundation packed in tubes, Please click here to view our tube filler webpage with details.

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

Facial essence filler / dropper bottle filler / spray bottle filler

Repellent Filler/ Spray Bottle Filler/ Spray Bottle Filling Machine/ Repellent Filler Capper Labeler

Liquid filler/ Cream filler/ Paste Filler

This filling line is suitable for filling liquid, cream, oil, etc., and different kinds of bottles, please contact us with your product and container, we can custom make the machines for your bottles and products. With some change parts, one machine can fill different kinds of bottles.  Also, the client can choose this whole filling line or choose either machine he needs from the filling line, we can quote accordingly.

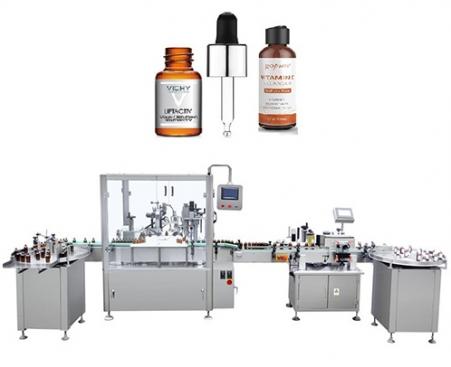

Machine Photo:

This filling line includes the bottle in-feed turn table, automatic filling, automatic spray cap or dropper cap loading, capping, labeling, bottle collecting turntable.

The operation step is as follows:

The turntable feed the empty bottles, the peristaltic pump do the filling, automatic spray cap or dropper cap loading, servo motor driven capping, which is more accurate, the labeler do the labeling, and the bottle collecting turn table collect the finished bottes ready for carton packing, if the client need, he can choose a whole line such as follows:

Bottle feeding turn table+ Bottle Filler Capper + Labeler+Cartoner + Carton Film Over Wrapper

The filling line can also connect with automatic carton erector, carton filler, carton sealer, carton strapping machine, carton pallet placer to form a complete packing line, if the client also need these machines, please contact us for more details.

Technical parameters:

Loading capacity: 5-200ml

Output: 30-40 BPM

Filling accuracy: ≥99％

Cap and plug loading accuracy≥99％

Capping accuracy≥99％

Main machine power: 2KW

Voltage: 220V, or the voltage can be made according to client’s requirement.

Labeling accuracy: ±1MM

Machine video:

See some sample photos we can fill below, the container types and sizes are not limited as below shown:

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

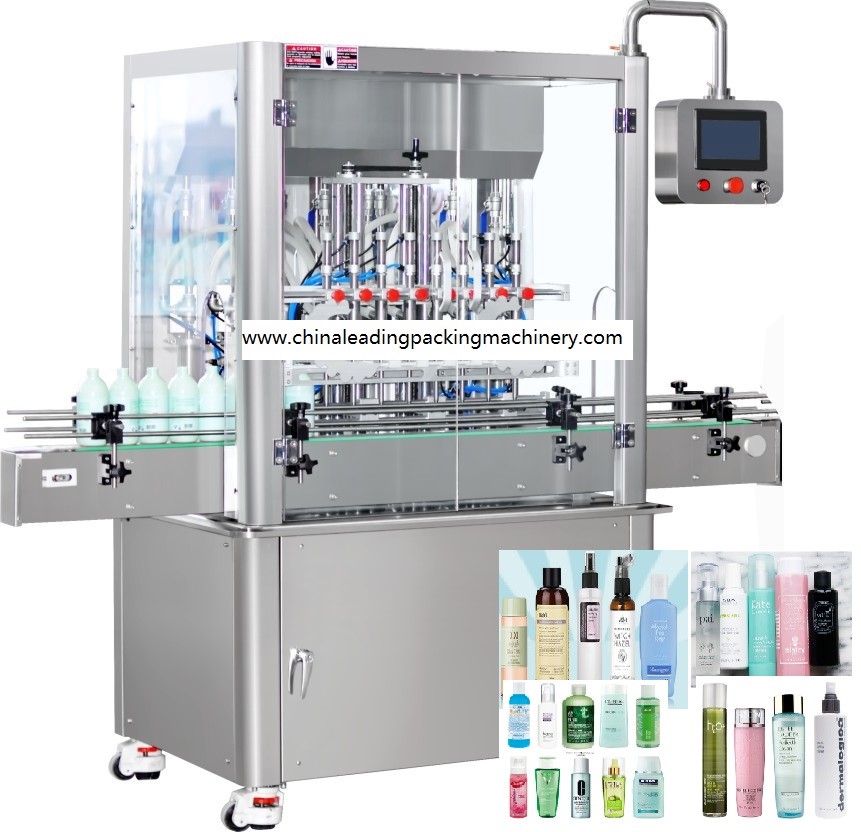

Linear Multi-Nozzle Servo Motor Driven Piston Filler Capper Labeler For Cream, Paste, Granular Paste, Liquid, Oil

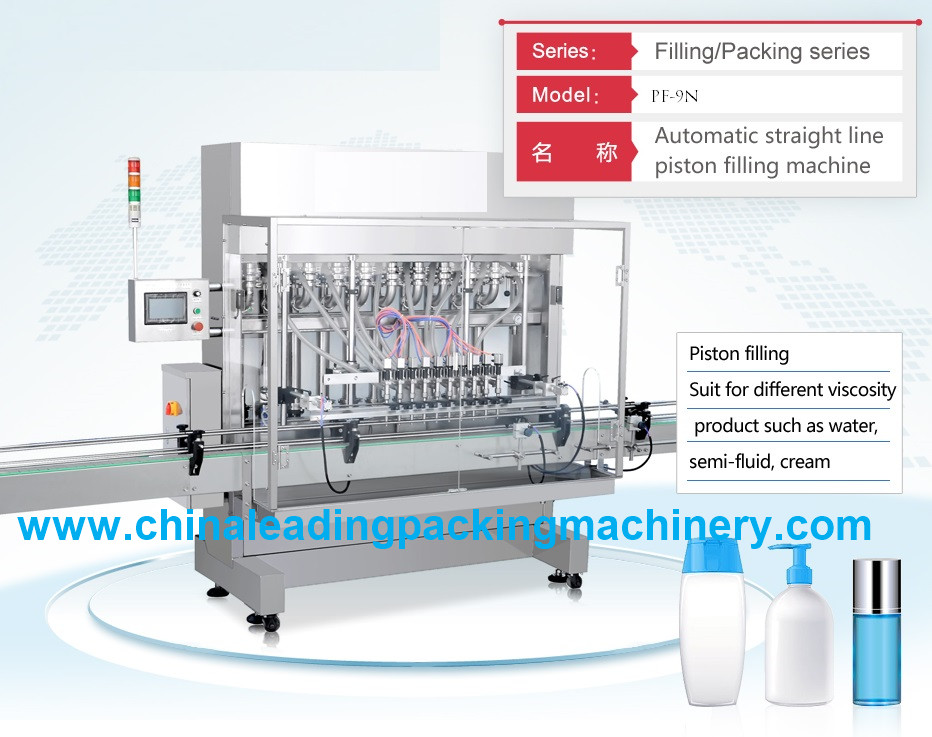

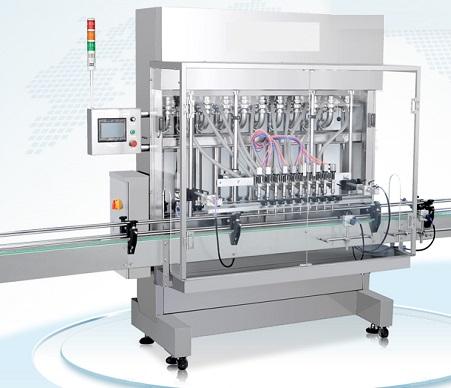

Machine Photo:

This servo motor driven piston filler for liquid, cream, oil, etc., with multiple filling nozzles optional, that can work on line with a high speed bottle unscrambler, a filler, a capper, a labeler, cartoner, carton film over wrapper to form a complete production line. If you need a complete line, please contact us, we will send the complete line information to you with all machines included.

Bottle unscambler + Filler + Capper + Labeler + Cartoner + Carton Film Over Wrapper

The filling line can also connect with automatic carton erector, carton filler, carton sealer, carton strapping machine, carton pallet placer to form a complete packing line, if the client also need these machines, please contact us for more details.

Servo Motor Driven Piston Filler Compared With Traditional Compressed Air Driven Piston Filler

For the servo motor driven piston filler, its filling volume can be adjusted easily at the all English language touch screen, which is very convenient, there is no need to do mechanical adjustment for volume adjustment, which is much faster and easier than the normal compressed air driven piston filler.

The servo motor driven piston filler’s filling accuracy is more stable than the normal compressed air driven piston filler, as this type of filler’s filling piston is controlled by the servo motor, electrical driven, so the filling volume is very accurate and stable, without being affected by the compressed air source stability in your factory.

See below machine running video, servo motor driven piston filler

Machine features:

1. Ideal for filling of thin or thick cream, paste, granular paste, liquid, etc. such as essential oil, gel, hand cleanser, dish washer, etc. It suits for filling a vast variety of product, not limited as listed, please contact us with your filling product, and container information, we will recommend machines for you accordingly.

2. The client can choose 2 ~10 filling nozzles according to the production speed he need.

3. Filling controlled by servo motor ,8 nozzles fill simultaneously. The nozzle quantity can be decided by the client according to the production capacity of the client.

4. Easy and convenient to adjust the machine for different bottle size and shape filling.

5. The cleaning of the product hopper is very easy and quick, just clean the hopper with water and the cleaned water can be drained to the hose out of the hopper.

6. Contact material parts is 316L stainless steel and silicone rubber, in conformity with cGMP standard.

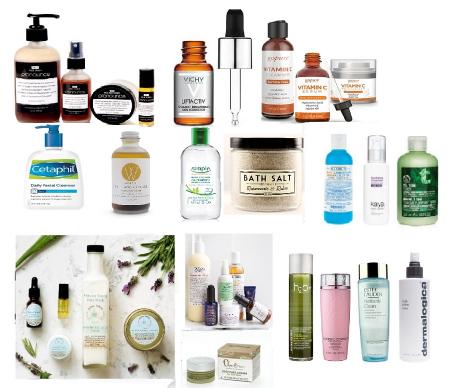

See some sample photos we can fill below, the container types and sizes are not limited as below shown:

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

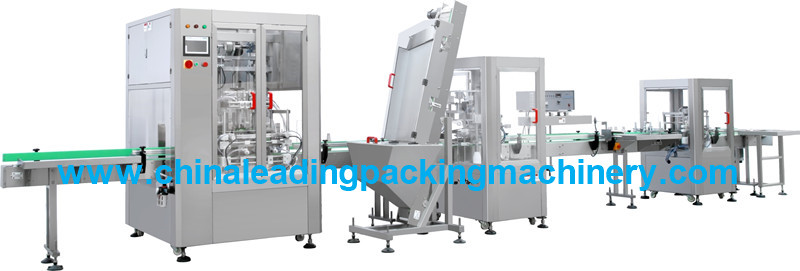

Servo Motor Driven Piston Liquid Filling Capping Labeling Laser Coding Line

Technical parameters of 4 piston filling machines:

(1) Number of filling heads: 4, the filling nozzle quantity can be made according to client's requirement for different production speed need.

(2) Filling capacity: 50ml-500ml (We can custom make the machine to be suitable for different filling volume needs of clients. the client can fill different volumes of bottles with easy adjustments of the machine.)

(3) Filling Form: Servo motor driven piston filling

For the servo motor driven filler, its filling volume can be adjusted easily at the all English language touch screen, which is very convenient, there is no need to do mechanical adjusting, which is much faster and easier than the piston filler.

The servo motor driven filler’s filling accuracy is more stable than the piston filler, as this type of filler’s filling piston is controlled by the servo motor, electrical driven, so the filling volume is very accurate and stable, without being affected by the air source stability. Ideal for thin or thick cream, paste, granular paste, liquid, essential oil, gel, hand cleanser, dish washer, etc. It suits for a vast variety of product, not limited as listed, please contact us with your product, and container info.

(4) Filling speed: 25-60 bottles/minute

(5) Filling accuracy: ±1%

(6) Pressure: 0.6-0.8 MPa

(7) Power: about 2KW/380V three-phase five-wire

(8) Product hopper volume: 50 liters

(9) Protective device: alarm of liquid shortage and shutdown of storage tank.

Servo Motor Driven Piston Filler Compared With Traditional Compressed Air Driven Piston Filler

For the servo motor driven piston filler, its filling volume can be adjusted easily at the all English language touch screen, which is very convenient, there is no need to do mechanical adjustment for volume adjustment, which is much faster and easier than the normal compressed air driven piston filler.

The servo motor driven piston filler’s filling accuracy is more stable than the normal compressed air driven piston filler, as this type of filler’s filling piston is controlled by the servo motor, electrical driven, so the filling volume is very accurate and stable, without being affected by the compressed air source stability in your factory.

Technical parameters of capping machine:

(1) Lifting method: Lifting belt type Lifting

(2) Suitable specification: according to the model provided by customers

(3) Cap type: pneumatic cap with air claw

(Different specifications need to be replaced with screwcap and other accessories)

(4) Speed: 60 bottles per minute

(5) Program control: shared with filler

(6) Power of the whole machine: 500W

(7) Pressure: 0.6-0.8 MPa

(8) Power supply: 220V single-phase

Technical parameters of aluminium foil induction sealing machine:

1. Applicable bottle mouth diameter: according to customer requirements.

2. Applicable bottle height: according to customer requirements.

3. Sealing coil: plane coil

4. Production capacity: 80 bottles per minute

5. Rated voltage: 220V.

6. Power of the whole machine: 4400W.

7. Cooling mode: air-cooled

See some sample photos we can fill below, the container types and sizes are not limited as below shown:

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

Related cosmetic packing machines

Compact powder, eye shadow, blusher presser

Mascara/lip gloss/eye liner filler, filling line

Lipstick filler, filling line

Nail polish filling line

Double color cream filler

Foundation filler

BB cream, CC cream filler

Here are some of our clients’ testimonial letters below for your reference:

1. Shawn from pharmaceutical products manufacturer in USA

We have been using many of their pharmaceutical product processing and packing lines, such as eyedrops filling line, capsule blister packing line, etc. over the years with our company’s development. As our pharmaceutical products needs high standard of aseptic environment, their machine’s good design to create perfect aseptic environment and running consistently without need for correction during production, meet our standard requirement and really helps us a lot to ensure our production quality and capacity, this helps to raise our production efficiency and safeguard our brand image in the market.

2. Johnny from skincare product contract manufacturer in USA

We have been using their packing machines for over 15 years, their machines’ quality and durance exceeds our expectations, and their efficient after sales service always help us a lot to keep up with our production schedules and without down time, they provide in time delivery for spare parts and professional technical solutions for any problem we have about the machines, that is wonderful user experience for us over the years. That is why we continue to use their company’s machines and service with the development of our company all these years.

3. David from health care private label factory in UK

We bought many packing lines for our health care product from them for different products such as capsule filling line and protein powder filling line, oral liquid filling line, and the machines’ performance are very good, the machines are with famous branded parts and can work very smoothly and meet our production needs, the menu in touch screen is in English, easy to understand. Their technical and sales people are very friendly and helpful.

4. Joe from cosmetics contract manufacturer in Argentina

We buy lots of packing machines from them, and we have developed from a small fctory to a big company group over the years and also thanks to their continuous support with good packing machines with good technology, good mechanics, their machines’ put together is good and very fine made with long lifetime, all this helps with our production plans for our clients’ packing needs.

5. Louis from personal care product manufacturer in France

As contract manufacturer we have different products with different packing needs, they can satisfy our needs with tailor made solutions, and up to our budget, we are glad to find them, which saves us time and cost, they are ideal for us.

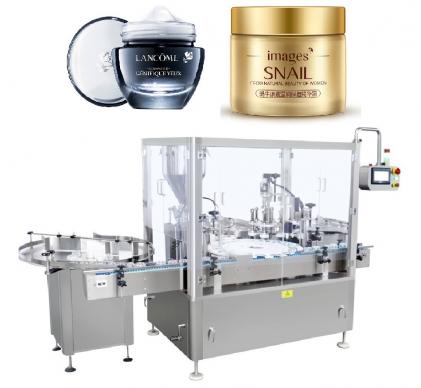

Eye Cream, Facial Cream In Plastic Or Glass Jars Or Bottles Filling Capping Labeling Line/ Cream Filler

Below is the filling line for all kinds of creams, such as eye cream, facial cream, etc. You can also fill jars with the machine automatically seal the jar with aluminium foil.

The production process description is generally as follows:

The screw bottle spacer will keep proper distance between bottles for proper filling, bottle automatic detection (when there is bottle detected, the machine will do filling, when there is no bottle detected, the machine will not do filling; when there is bottle detected, the machine will automatically place the cap, when there is no bottle detected, the machine will not place the cap), and then automatic filling, automatic cap placing, automatic cap pressing. If the client needs automatic labelling, we will add labeler into the line accordingly.

Machine photos:

Technical Parameters:

Filling capacity: 1-500ml or can be made according to client's requirement.

Production capacity: 40 bottles/minute, the filling nozzle and capping heads can be made double work station to speed up the production speed, for details, we can discuss with client and make according to his requirement.

Filling accuracy: ≥ 99%

Cap placing accuracy: ≥ 99%

Machine power: 1KW 220V
