China Leading Packing Machinery Co., Ltd.

Juice Beverage Filler

Honey Oil Filler

description

We have different kinds of filling machines for honey, oil, fruit juice, beverage, filling, suitable for your packing need and production speed need, please contact us with your packing needs, we will recommend machines accordingly and send you machine specification, video and photo for your reference.

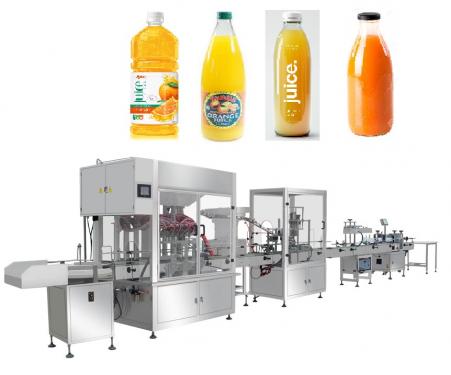

High Speed Honey Filler, Oil Filler, Tomato paste filler

Tracking Filling Capping Line

1. Machine Description:

High speed honey, oil tracking filling capping line

14 filling nozzles, auto cap placing, 7 capping heads, tracking type filling line with very high production capacity

The filling nozzle quantity and capping heads quantity can be made according to client's need, according to his production speed need.

2. Machine Running Video:

Honey Oil Filling Production Line:

See some sample photos we can fill below, the container types and sizes are not limited as below shown:

3. Machine Details:

A. Suitable product:

This filling line is suitable for many different kinds of products filling, such as liquid, cream and high viscosity products, such as fruit juice, honey, oil, detergent, grease, etc. The products can be filled is not limited to above listed, contact us with your product and container, we can make machine accordingly.

B. Features:

This line is consist of automatic bottle unscrambling, high speed tracking filling, auto cap placing, high speed tracking capping, automatic labeling with hot printing of batch number and production date.

It can also work with automatic cartoner to put bottle into retail box. And can work with film over wrapper on the retail box. It can also work with automatic carton erector, automatic carton filler with mechanical arm, and automatic carton sealer, and automatic pallet placer. The client can choose either of the machine in the line, or all machines, contact us for more details for above machine mentioned.

1. This production line is PLC intelligent control of the machines.

2. English touch screen control of the machine’s setting, including setting for filling volume, very convenient. No need mechanical adjustment for filling volume.

3. The machine is suitable for different kinds of bottle size and shape, with minor adjustment, very convenient and saves production time for bottle change.

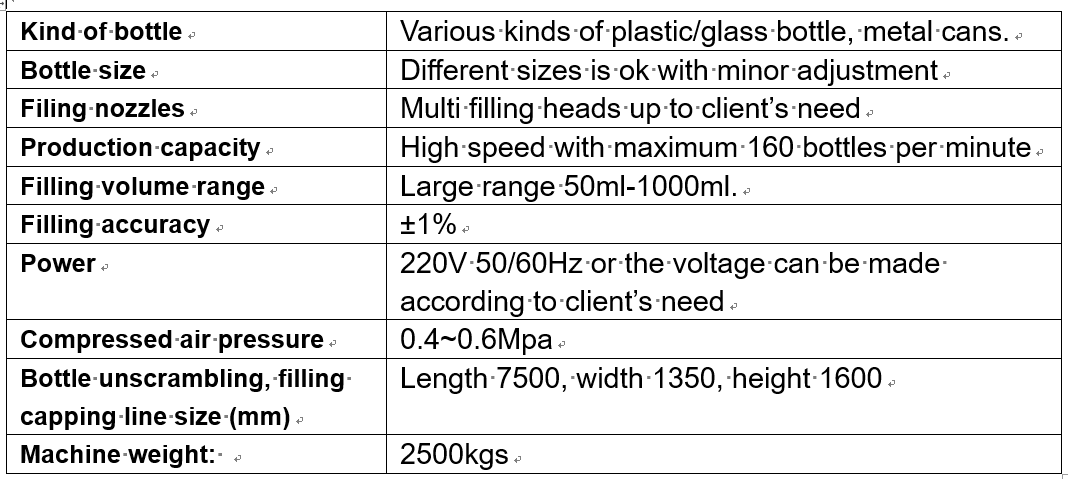

C. Technical parameter:

For fruit juice or beverage filling machine, please click here to check out.

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

Medium Speed Honey/ Oil/ Fruit Juice Filling Production Line

Six Nozzles Servo Driven Piston Filling Capping Production Line for Cream, Paste, Liquid/ Cream filler, paste filler, liquid filler

Suitable filling product examples:

This production line is composed of six nozzles filler, cap presser and capper. This filling and capping production line is suitable for filling liquid and semi-fluid materials such as honey, oil, fruit juice, soy sauce, oyster sauce, tomato sauce, chili sauce, peanut butter, similar products are also applicable for filling. Contact us with your product and packing container, we will offer you ideal solution of production line.

Machines photo:

See some sample photos we can fill below, the container types and sizes are not limited as below shown:

Technical parameters:

1. Number of filling heads: 6 nozzles, the nozzle quantity can be made according to client's need for the production output purpose.

2. Filling capacity: 100-3000 (milliliter) adjustable (the filling volume can be customized according to the customer’s requirements)

3. Filling Form: Servo Motor Driven Piston Filling

4. Theoretical filling speed: 20-80 bottles per minute depending on the filling volume and the filling nozzle quantity, the filling nozzle quantity can be decided by the client according to his own need on production speed.

5. Filling accuracy: ±1%

6. Conveying speed: 5-15 meters/minute

7. Whole machine power: 500W/220V AC single-phase or the voltage can be made according to client’s need.

8. Program Control: Imported PLC with Touch Screen Man-machine Interface

9. The machine can be customized to client’s need.

Machine features:

1. High-efficiency packaging and minimal product-loss filling system

A. The filling system adopts servo motor speed synchronous tracking drive, filling measurement uses PLC automatic processing system. It not only improves the production efficiency, but also simplifies the operation.

B. The filling volume adjustment can be done by inputting data directly on the touch screen without need to change or adjust any parts of the machine, much better than traditional piston filler.

C. So it is very convenient for client use, now this servo motor driven piston filler is very popular with our clients for its high efficiency and convenience in operation and adjusting filling volume.

D. It is more accurate in filling volume than the traditional piston filler. The traditional piston filler’s filling accuracy can be affected by the compressed air supply consistency, while the servo motor driven piston filler is controlled by servo motor which is electrical driven, so it is more stable in filling accuracy.

2. Perfect packaging appearance - by controlling the submersible filling process, filling head filling in the container. At the same time, use POB full sealing head plugging filling nozzle to seal, never drip, no pollution.

3. Upgrading of machine --- powerful HMI (human-machine interaction) function can easily solve the adjustment of filling volume, measurement error and filling speed. The special filling volume adjustment memory storage function of the machine can automatically store different filling volumes done. The user can store the filling product and volume in the touch screen memory system, when filling of a certain product and a certain filling volume that is stored, he can select from the memory library in the touch screen without need to re-adjust the machine.

4. The product is designed and manufactured according to GMP health protection grade. It is suitable for filling oil, peanut butter, chili sauce and concentrated fruit juice.

5. The product filling circuit in the machine is very convenient for cleaning.

6. Using advanced man-machine interface, the operation data can be adjusted and stored, and the fault can be displayed.

7. Servo drive, man-machine interface setting filling volume, high-precision filling, easy to use;

8. Precision stainless steel piston cylinder processing technology to ensure that filling accuracy and consistency, so that the sealing ring can be used for a long time without wearing out.

9. The material contact part is made of stainless steel 316L, which is corrosion-resistant and fully conforms to food hygiene standards.

10. Anti-foaming, double anti-drip and leakage mechanism.
