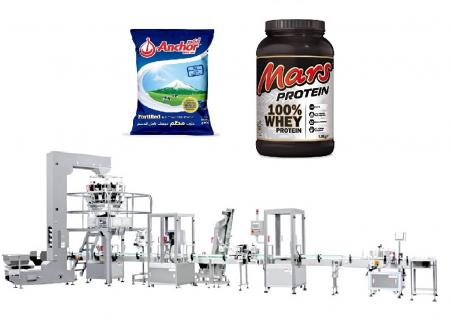

Powder Filling Production Line / Powder Filler / Powder Filling Machine Machine Photos:

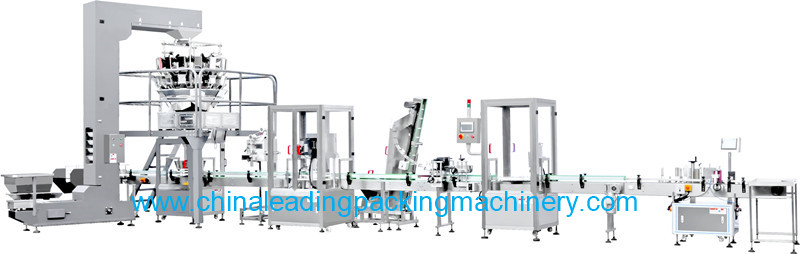

1. Powder filling machine with bottle unscrambler and induction sealer

2. Bottle Labeler Photo:

Below photo is showing some of the container types that the powder filling machine can fill, the machine can fill many container types, not limited to below shown containers, please send us your container size and photo, we will recommend machines to you, we can also custom make the machine right for your need.

Machine Description:

This automatic powder filling and packing machine was designed for automatic powder filling, weighing,failed packs detecting & rejecting.

The machine is suitable for packing powdery & granular product, such as milk powder, chili powder, chicken essence, pepper, protein powder, probiotics powder, gourmet powder, solid beverage powder, icing sugar, salt, curry powder, Glucose powder, coffee powder, powder medicine, food additive, etc.

◆Powder or Granule filling and capping, induction sealing, labeling

◆Servo motor driven powder filling, which makes the filling accuracy consistently stable

 And the Filling volume can be set on the touch-screen, without need to do any mechanical adjustment.

◆The auger is changeable, to be suitable for different powder.

◆ Suitable for different kinds of bottle and cap size with simple changeover

◆can Fully open on both sides of material hopper, easy for cleaning

◆Optional material feeding system

◆Can fill bottle and cans

Main Technical Specification

Filling Volume: 3-1000ml(by switching the auger)

Number of Filling Head: 2 Sets

Capacity: 30-60 Bottles/min

Filling Accuracy: ±0.75%

Hopper Volume: 30L×2

Compressed Air pressure: 0.5~0.6 MPA

Air consumption: 0.2m³/min

Voltage: 380V/220V 50-60Hz or up to client’s need

Power: 2500W

Dimension: 5500×1200×2000mm(L×W×H) for production line of powder filling capping, induction sealing, labeling

Net Weight: 1800Kg

Machine Running Video:

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

Automatic Granule, Powder Filling Production Line Series

The production line is composed of below production procedures:

Can-feeding turntable, multi-head scale filling (with chuck-type vibration filling), can sealing, screw-capping, labeling, coding for weight-filling and sealing cans with granule or powder.

Seven Machines included in the production line, see below detailed introduction for all the machines, if you have any further questions, please feel free to ask us by email.

1. Automatic Can feeder

Technical parameters:

1. Suitable Container: We make the machine according to the container sizes provided by client.

2. Diameter of turntable: 900mm or can be made according to client’s requirement.

3. The height of the platform from the ground: 750mm or can be made according to client’s requirement.

4. Power supply: 220V, 140 W, 50HZ single-phase or can be made according to client’s requirement.

2. Automatic Multi-head weighing filling machine for granules or powder

Technical parameters:

1. Single weighing range 10-1000g or can be made according to client’s requirement.

2. Maximum weighing weight 6500g or can be made according to client’s requirement.

3. The average error of single bag is 0.2-0.7g.

4. Weighing accuracy range 0.1-1.5g

5. Maximum weighing speed 1200 cans/hour (for 1000g can)

6. Product hopper capacity 2500ml

7. Dual-row memoryless hopper in hopper form

8. Stepping motor with driving mode

9. 99 presupposed products

10. Number of multiple scales: 14 or can be made according to client’s requirement.

11. Number of filling heads: 1 or can be made according to client’s requirement.

3. Automatic Chuck type grain filling machine (with vibration)

Technical parameters:

1. Number of filling heads: 1 or can be made according to client’s requirement.

2. Suitable Can Type: the machine can be made according to Customer’s Samples.

3. Filling capacity: can be made according to customer’s samples

(if customer needs to switch filling between different can sizes and shapes, he will need to replace the machine’s chucks and adjust some machine parts to achieve one machine filling different can shapes and sizes, but the process is easy, we will show you clear instruction videos.)

4. Filling Form: Multi-head Filling

5. Production speed: 30 cans per minute, the filling head quantity can be decided by customer to achieve higher production speed.

6. Power of the whole machine: about 1.5KW

7. Air pressure: 0.6-0.8 MPa

8. Power supply: AC220V, 50/60HZ single-phase, or can be made according to client’s requirement.

9. Fourteen heads weigher will include an additional foot pedal control the filling function, with a separate filling hopper (suitable for filling 1000g)

4. Automatic Desiccant dispenser

Technical parameters:

1. can be made according to client’s samples.

2. Desiccant bag size: width:(15-30mm) x length:(40-60mm)

3. Production capacity 30 cans per minute, or can be made according to client’s requirement.

4. Power supply voltage 220V/50HZ or can be made according to client’s requirement.

5. Desiccant dispenser’s size: 650 x 650 x 1360 mm

6. Desiccant dispenser’s Weight: 100 kg

5. Automatic Chuck-type can sealing machine:

Technical parameters:

1. Applicable Product Scope: can be made according to client’s samples.

(Changing chucks for different can types)

2. Applicable Cap Diameter: can be made according to client’s samples.

(for different can types’ sealing, some machine parts need to be switched to suit for different can size and shapes, but the process is easy, we will show you clear instruction videos.)

3. Cap loading Form: Pneumatic Automatic Cap Loading

4. Can Sealing Form: Single Claw Sealing or can be made according to client’s requirement of production speed.

5. Production capacity: 30 cans per minute or can be made according to client’s requirement of production speed.

6. Main motor power: 370W

7. Air pressure: 0.6-0.8 MPa

6. Automatic clamping capping machine

Technical parameters:

1. Cap elevating method: cap elevator, suction cup automatically place the cap,

(different specifications need to be replaced and guideways)

2. Suitable Specification: According to the Model Provided by Customers

3. Rotary cap form: clip-and-screw cap

(Mechanical parts need to be adjusted for different specifications)

4. Speed: 30 cans per minute

5. Power of the whole machine: 800W

6. Air pressure: 0.6-0.8 Mpa

7. Vertical can labeling machine

Technical parameters:

1. Applicable Product Scope: Samples Provided by Customers

2. Applicable Label Scope: Samples Provided by Customers

3. Labeling position: round can

4. Labeling accuracy: +1 (excluding contour error)

5. Production capacity: 30 cans per minute.

6. Voltage: 220V.

7. Power: about 800W.
