Pulverizer And Mixer

Pulverizer and Mixer

description

There are fine grinder/ pulverizer and Mixer in this webpage, please click the below webpage tabs to view the details, and choose what you need, we have different series of pharmaceuticals processing machinery, you can contact us with your requirement, we will recommend machines accordingly and send you machine specification, video and photo for your reference.

1. Machine Description:

Fine grinder/ pulverizer for materials such as chemical products, food, medicine, medicament, cosmetics, plastic, dyestuff, resin, colorant, grain, as listed but not limited to the listed, most materials can be well pulverized by our machines.

We have different grinding machines, for different product grinding fineness, the client can use different mesh number of sieve meshes on the machine to achieve different grinding effect.

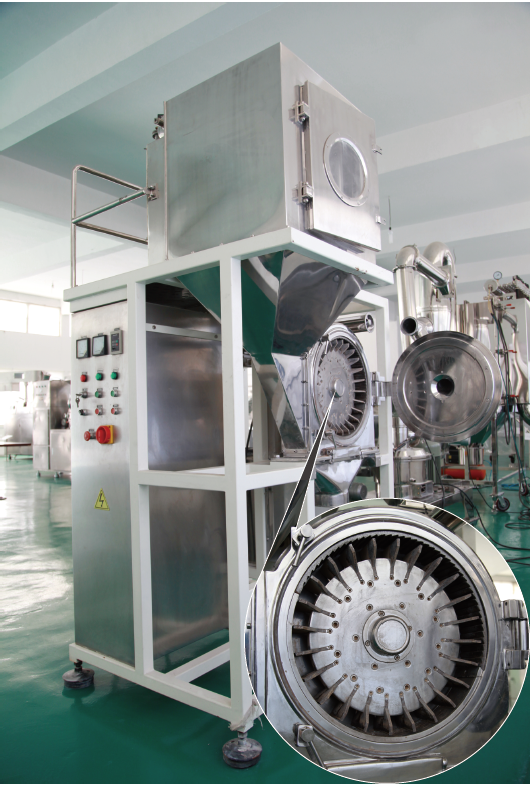

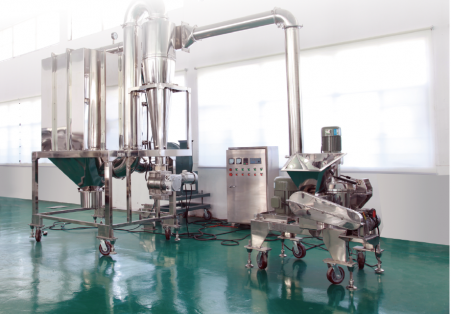

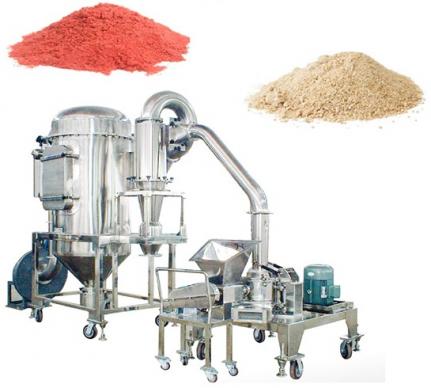

2. Pictures of machine

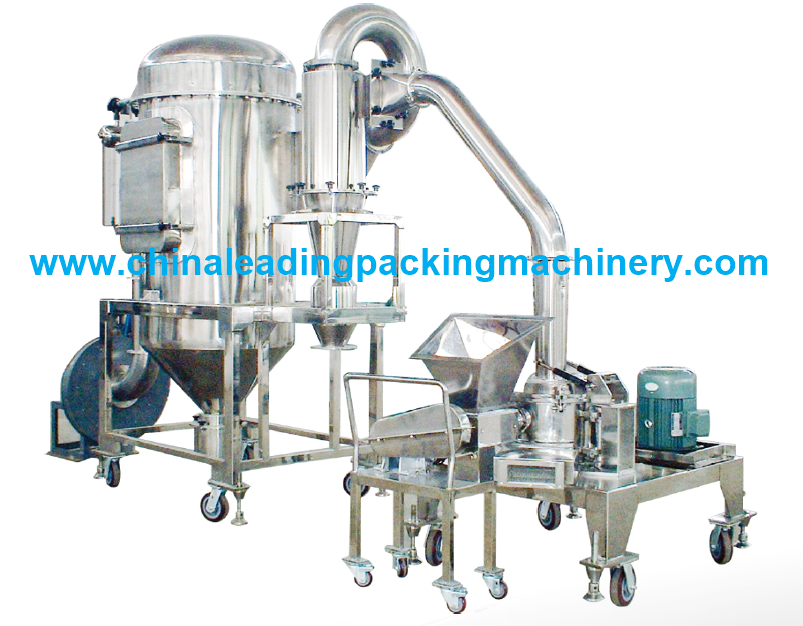

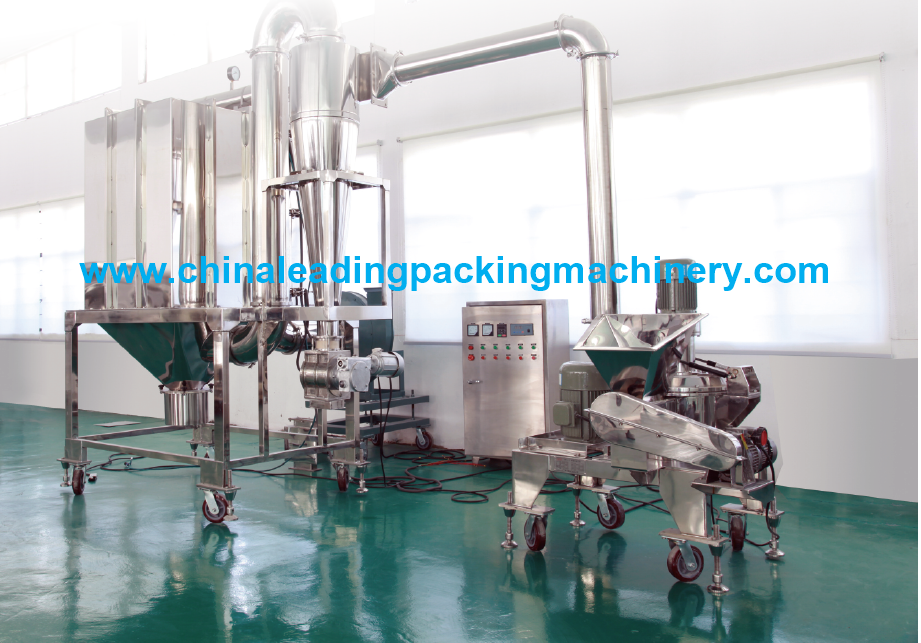

Fine Grinder 01.png

3. Machine specification and features:

A. Working method

The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fast-rotating blades. The powder passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.

As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be grinded again. While the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag-type collector via the material exit pipe by means of negative pressure wind conveyance. The discharge material meets the requirement for the product.

B. Main usage

The machine is made of three parts: main machine, auxiliary machine and electrical control box. It has the property of wind selection, with no sieve or net, and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products, food, medicine, medicament, cosmetics, plastic, dyestuff, resin, colorant, grain, etc.

C. Main features

1. The design is compact and structure reasonable. The machine is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consumption.

2. Equipped with a draught fan, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive materials.

3. Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fitness may reach 80~320 meshes.

4. Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained.

5. The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.

6. The main grinding parts are made of high-grade alloy tool steel so that the service life or change cycle of the wear parts is greatly lengthened.

7. High-speed precision bearings imported from abroad are adopted for the bearing system so that the whole machine runs smoothly with little vibration and noise.

8. The pipes are of quick-detachment construction, making detachment and cleaning quick and convenient.

9. Equipped with a cyclone separator and a collector, so there is no powder flying during production. The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.

10. The fine powder collected by the dust collecting bag can be effectively recycled. Thus the material loss is reduced.

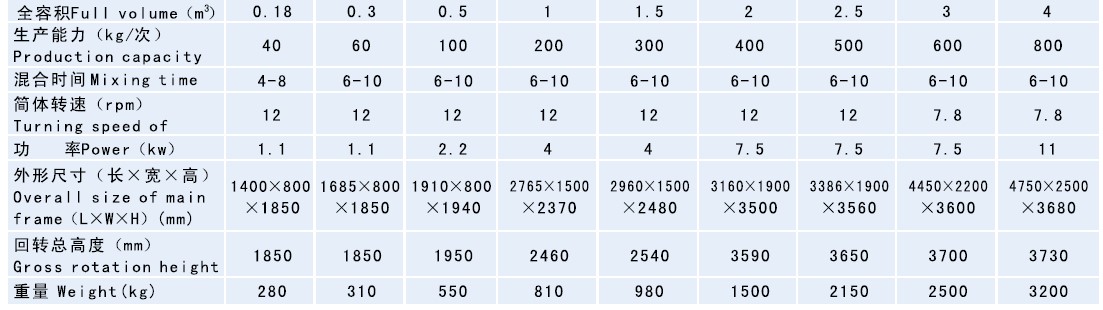

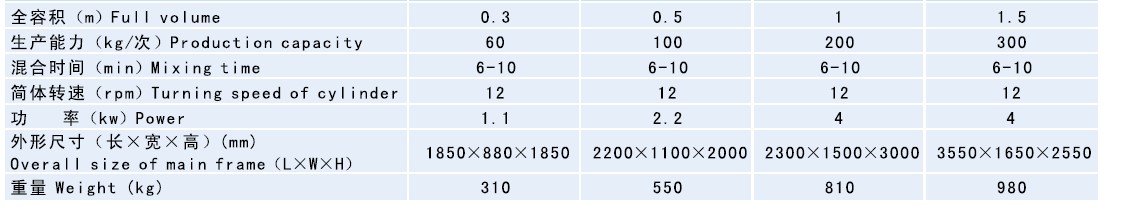

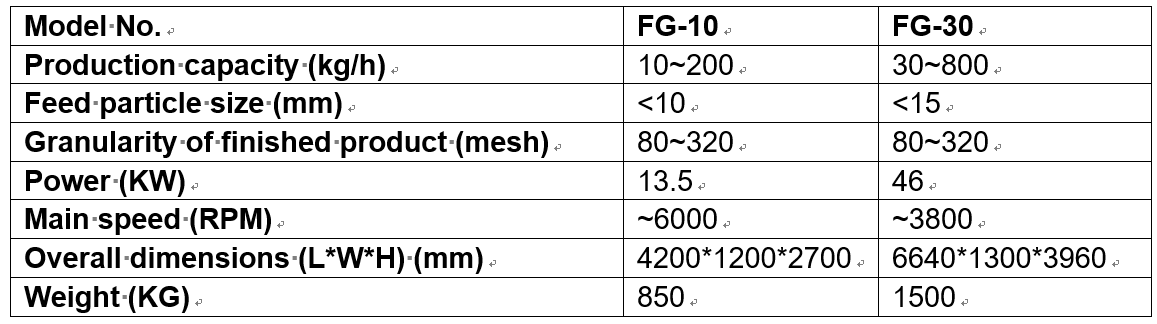

D. Technical data

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.
