We manufacture different series of blister packing machines to pack such as fruit jam, chocolate, cream, pudding, yogurt, syringes, ampoule bottles and medical products, food, electronic parts, hardware products, capsules and tablets, candy, chewing gum, pill, gel, etc. Here we only list part of the machines’ photos we have, please contact us with your detailed packing request, we will recommend suitable machine and send you machine photo, specification, video accordingly.
As comprehensive packing machines and processing machinery manufacturer, we have most of the machines you need, on the website we only upload part of the machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com

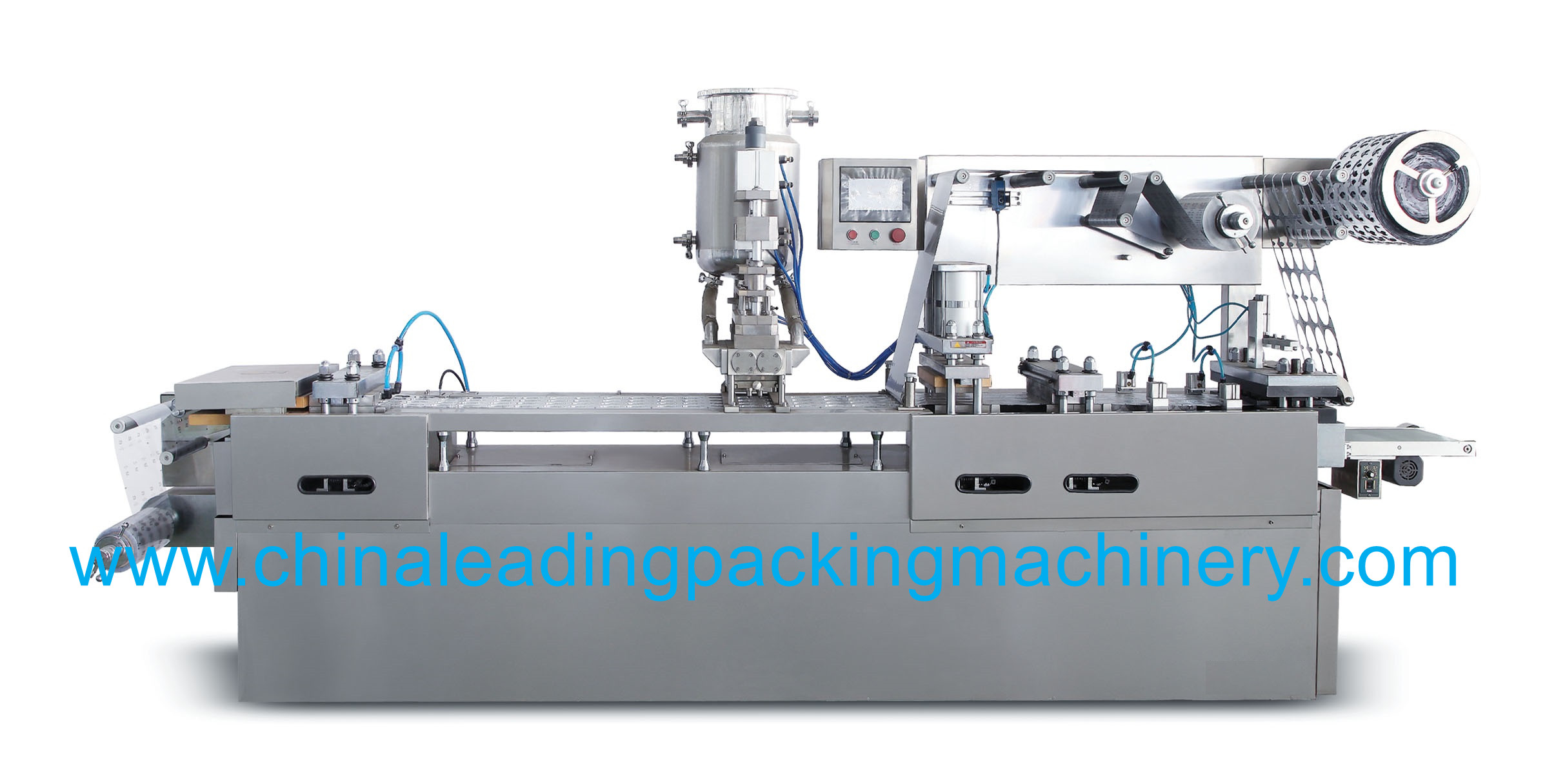

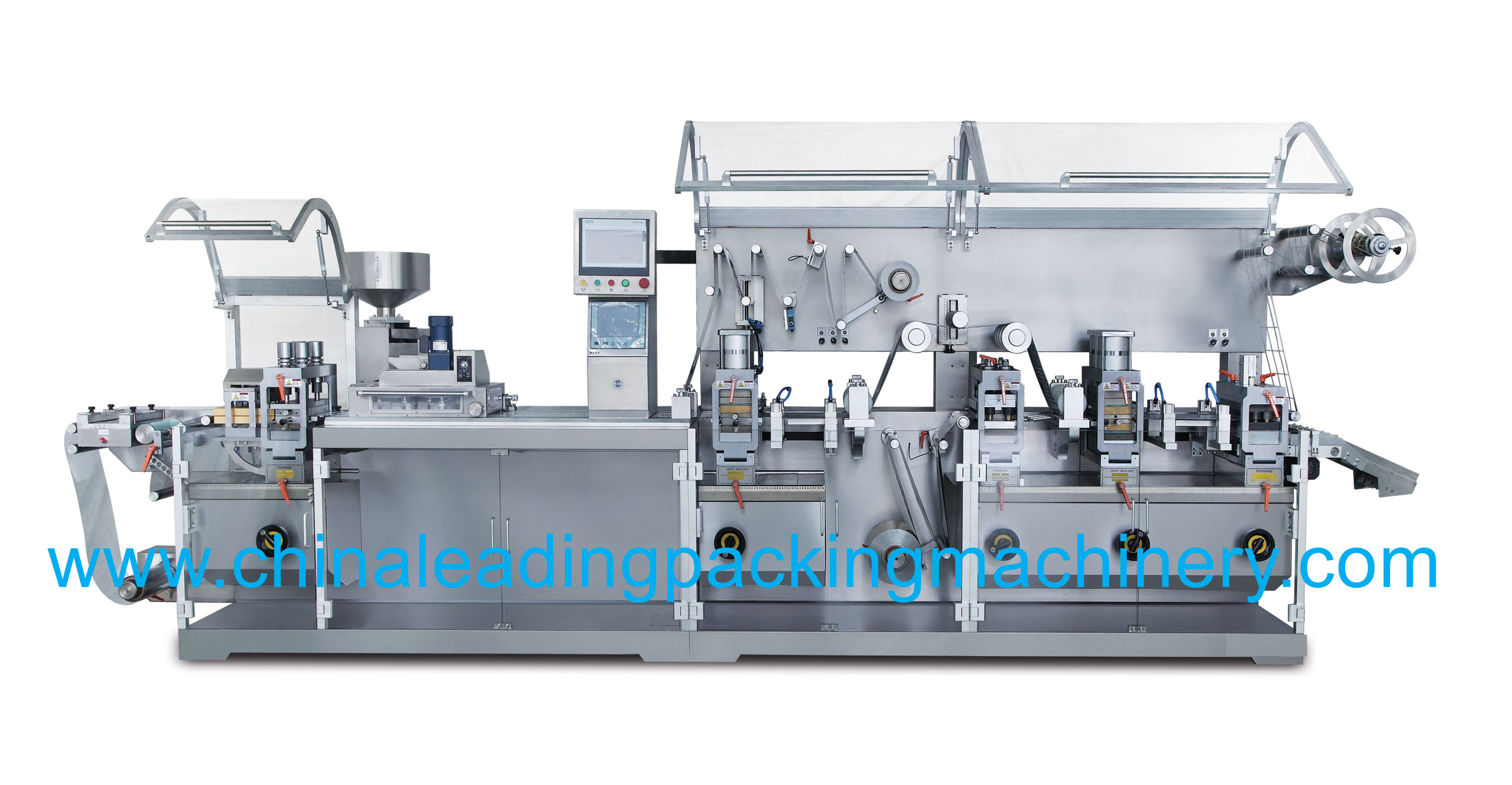

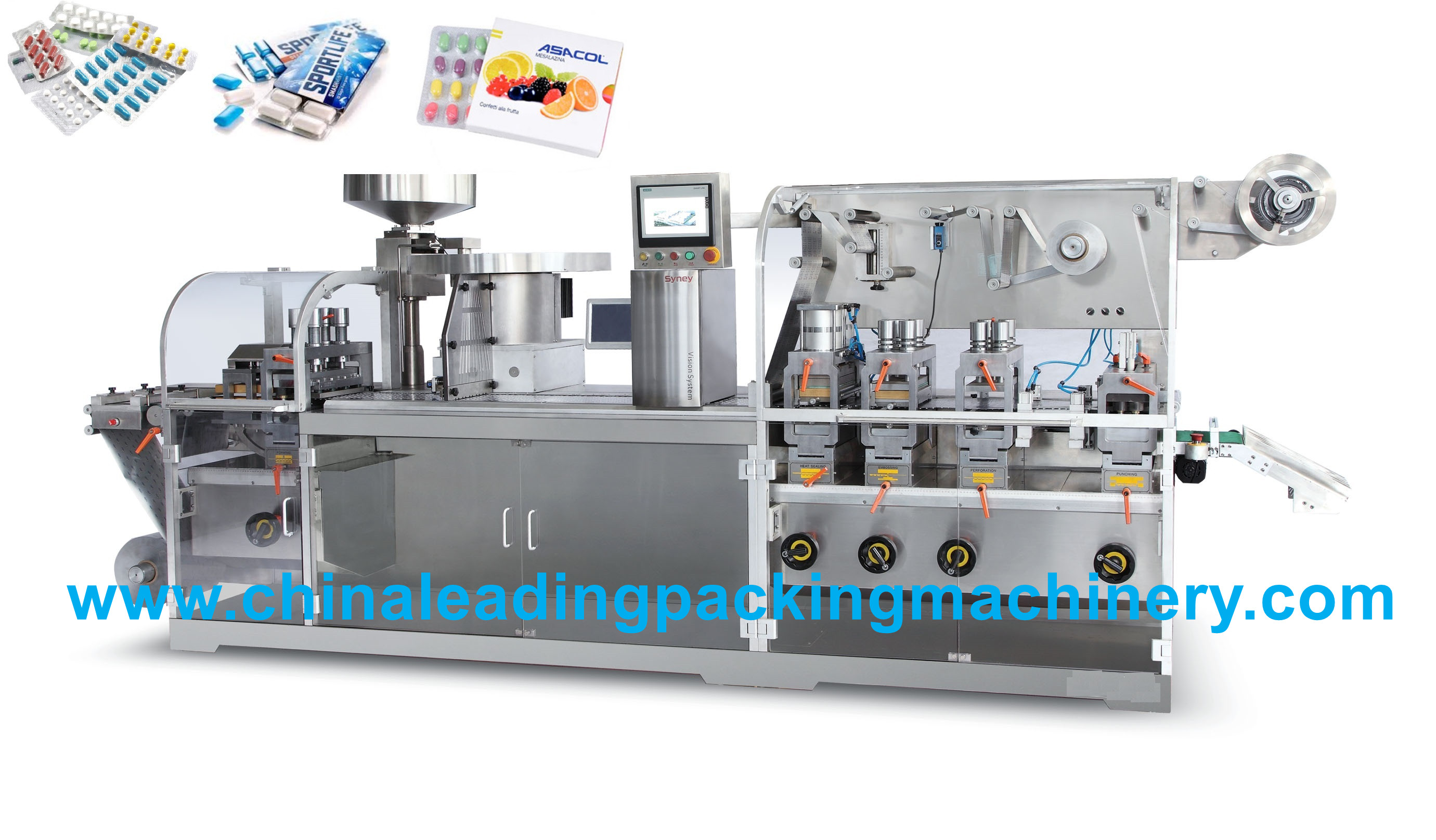

2. Pictures of machine
See machine running video below:
3. Machine specification and features:
A. Application
1).This machine is applied to Aluminium to PVC and Aluminium to Aluminium film blister packing of medicines, for example sealed blister packing of capsules and tablets of various specifications.
2).Applied to sealed blister packing of various syringes, ampoule bottles and medical products.
3).Applied to sealed blister packing of food, electronic parts, hardware products, etc.
B. Main features
1).Main drive: main motor located at the back of machine ,easy for maintenance. Synchronous belt drive instead of chain belt drive to reduce oil stain.
2).Guide rail installation method: guide rail of the cabinet is installed in cantilever way .It is convenient for the operator to remove the dropped medicine.
3).Mould base installation and adjustment: adopt lathe type guide rail and pinion and rack adjustment way. with position indicator and scale ruler for mould position adjustment.
4).All moulds including forming mould, heat-sealing mould, batch number emboss printing mould, punching mould can be orientation-guide pushed into its position by hand and mould handle rocked to finish mould change fast with no need wrench or other tools.
5).Adopt air shaft to install PVC material and aluminum foil, adopt PVC connection device to change roll material more faster.
6).PVC loading adopt roller trace to avoid PVC material being over-stretched during material pulling.
C. Main technical parameter
Model
270J
360J
Punch Frequency
10-70 times/min
10-70 times/min
Capacity
9600-12000(Standard80*57)
12000-15000(Standard80*57)
Max forming area depth
Standard 140×260×12mm Can be customized to 160×260×26mm(Punching frequency <25times/min)
Stroke
20-120(can be designed as user's requirements）
Standard blister
80*57(can be designed as user's requirements）
Air Supply
0.6 Mpa~0.8 Mpa； 0.3m3/min
Total Power
380V/220V 50HZ 10KW
380V/220V 50HZ 12KW
Main Motor Power
2.2
2.2KW
PVC hard sheet
0.15-0.5X270
0.15-0.5×360mm
PTP Alminum Foil
0.02-0.035x270
0.02-0.35×360mm
Cold Forming Aluminum Foil
0.14-0.20x270
0.14-0.20×360mm
Dialysis Paper
50-100g/m x270
50-100g/m2×360mm
Mould cooling
tap water or recycle water 60L/h
tap water or recycle water 60L/h
Overall Dimension(LxWxH)
4000x850x1700
4400×950×1750mm
Weight
2800kg
3700kg
Other related machines:
Pharmaceuticals packing machines:
Capsule/tablet/pill counter filling line
protein powder / probiotics powder filling line
eyedrop/ e cigarette/ oral liquid/ syrup filling line
blister packing and cartoning line
Processing equipment for pharmaceuticals, food, cosmetics, chemicals
Crusher, grinder, Granule Pulverizer,
Film tablet coating machine, tablet sugar coating machine,
Vacuum dryer, Fluidized dryer,
Pelletizer, Dry Granulator
Mixer, blender,
tablet presser, capsule filler
We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.
As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
Cream blister packing machine for packing such as fruit jam, chocolate, cream, pudding, yogurt, etc.

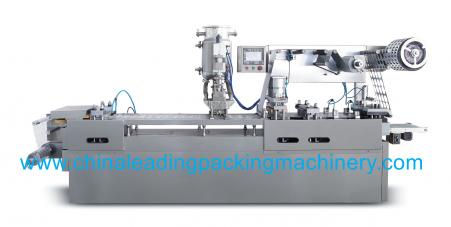

Machine photo:
See machine running video below:

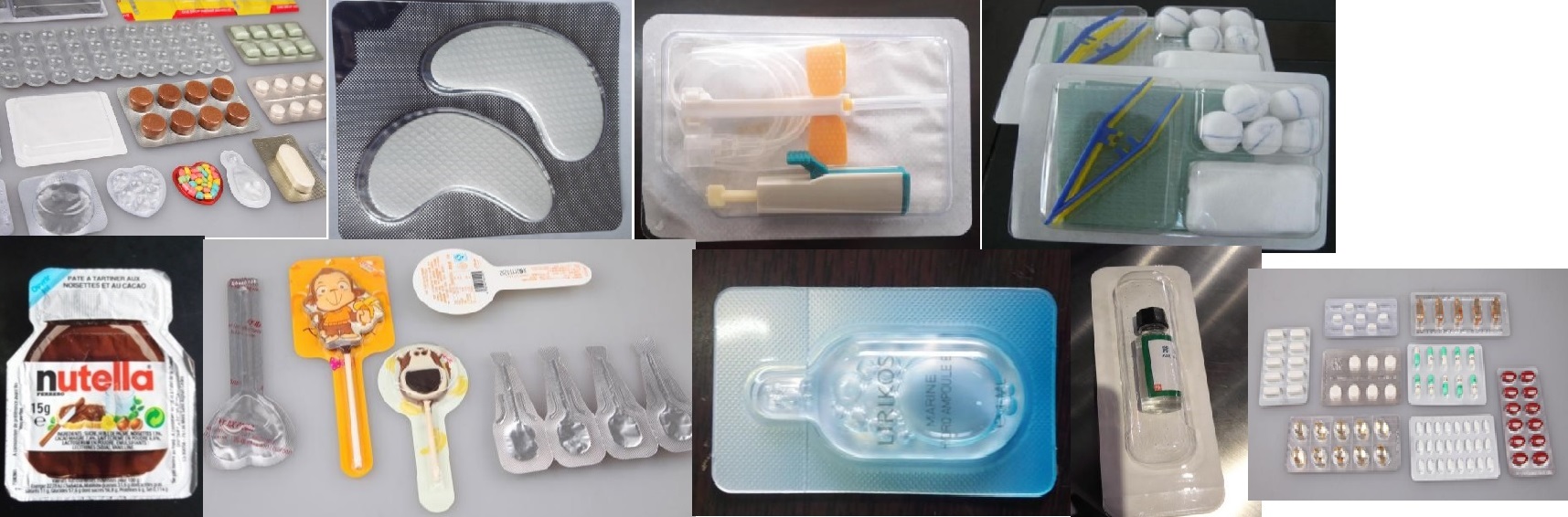

Blister packing machine can pack various types of product, such as below photos.
Machine’s specification:
1). Application
This machine is applied to blister filling and sealing packing of melted fruit jam, chocolate, cream and other foods. Full process is automatic, from blister forming to liquid filling, composite film sealing and punching to final products, which greatly reduces labor costs.
2). Main feature
1).Adopt full set of Mitsubishi HMI, PLC and servo control system. With easier operation, higher precision and lower failure rate.
2)Optical tracking system adopt imported three color sensor, which can sense all colors and output strong signal. Make sure to use color film, which can align with bottom film’s forming area.
3)Feeder adopts stainless steel 316, with jacket layer for heating function, and with removable piston for easy cleaning.
4)With safety cover made of food-grade 304/2B stainless steel and aluminum.
5)Pneumatic parts adopt original AirTac solenoid valves and cylinders.
6)Optional with coding system.
3). Main technical parameter
Punch speed
10-25 times/min
Max. forming depth
Standard 26mm，Maximum 50mm
Air pressure
0.6mpa-0.8mpa >0.3m3/min
Power
380V/220V 50Hz 6kw
Main motor power
1.5kw
Material types
PVC, PET, PS, composite film，aluminium foil
Material width
260(330)mm
Mould cooling
tap water or recycled water 60L/h
Overall dimension
2710×720×1600mm
Weight
2000kg
Other related machines:
Pharmaceuticals packing machines:
Capsule/tablet/pill counter filling line
protein powder / probiotics powder filling line
eyedrop/ e cigarette/ oral liquid/ syrup filling line
blister packing and cartoning line
Processing equipment for pharmaceuticals, food, cosmetics, chemicals
Crusher, grinder, Granule Pulverizer,
Film tablet coating machine, tablet sugar coating machine,
Vacuum dryer, Fluidized dryer,
Pelletizer, Dry Granulator
Mixer, blender,
tablet presser, capsule filler
We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.
As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
We manufacture different series of blister packing machines to pack such as fruit jam, chocolate, cream, pudding, yogurt, syringes, ampoule bottles and medical products, food, electronic parts, hardware products, capsules and tablets, candy, chewing gum, pill, gel, etc. Here we only list part of the machines’ photos we have, please contact us with your detailed packing request, we will recommend suitable machine and send you machine photo, specification, video accordingly.
Blister packing machine can pack various types of product, such as below photos.

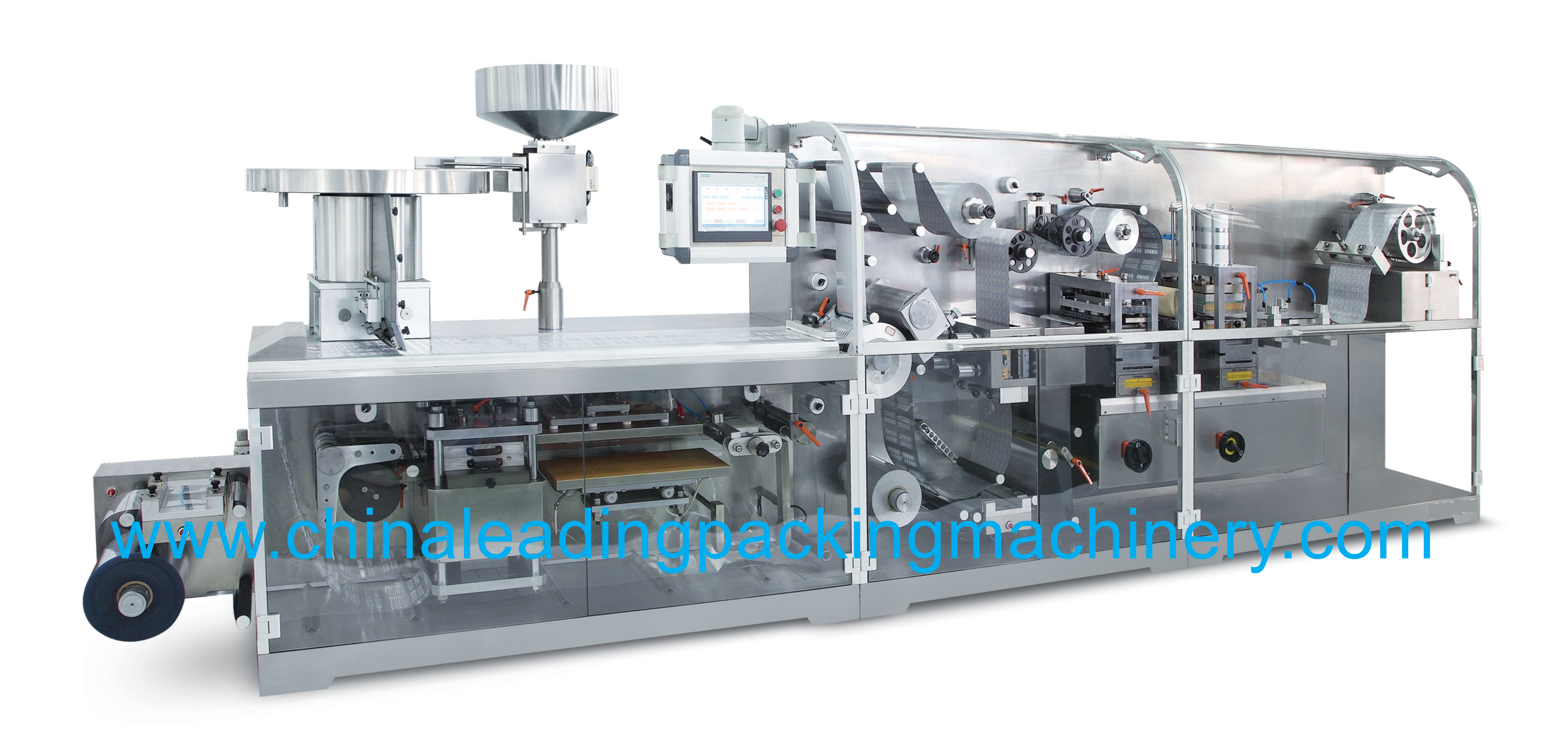

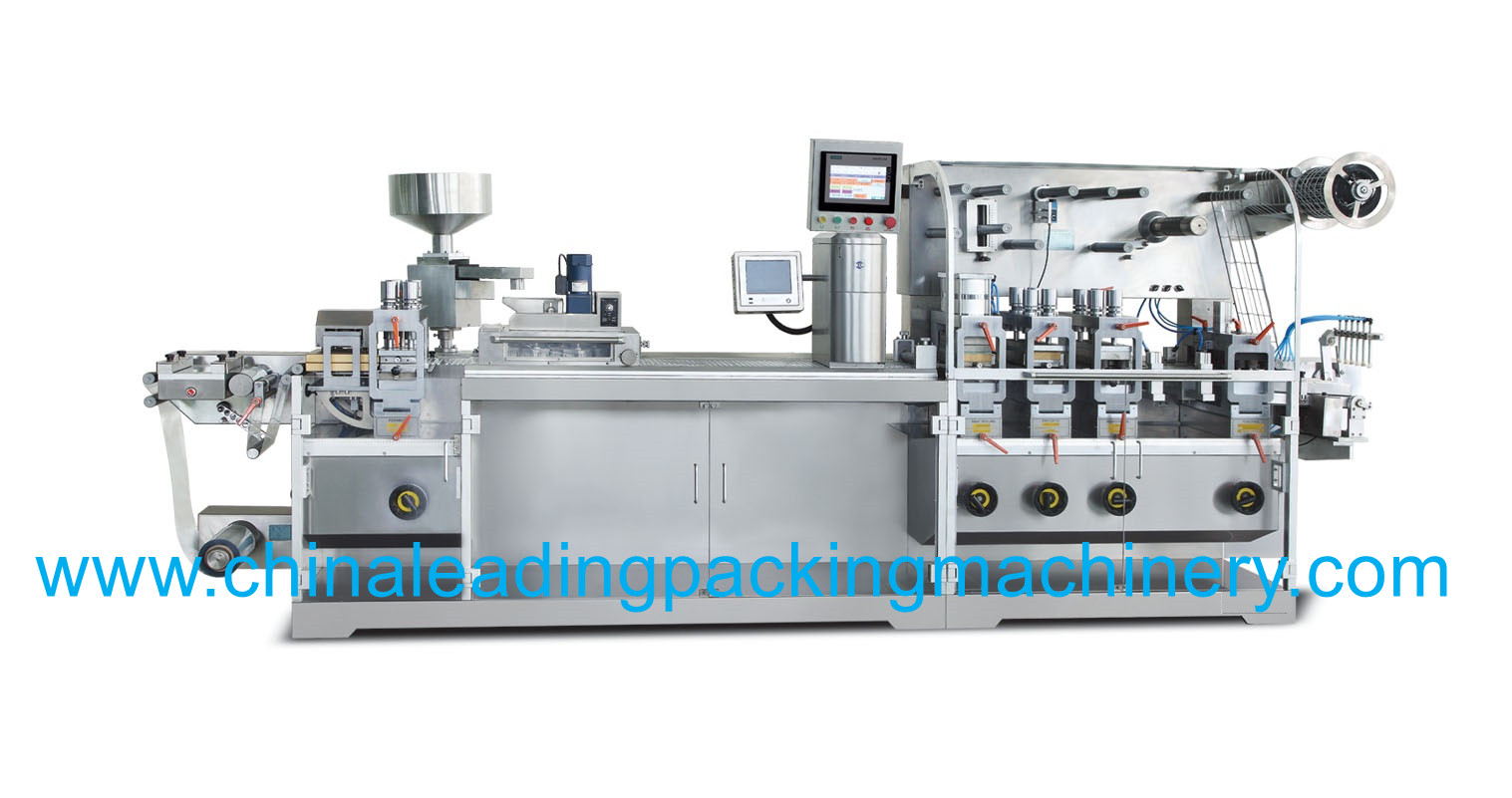

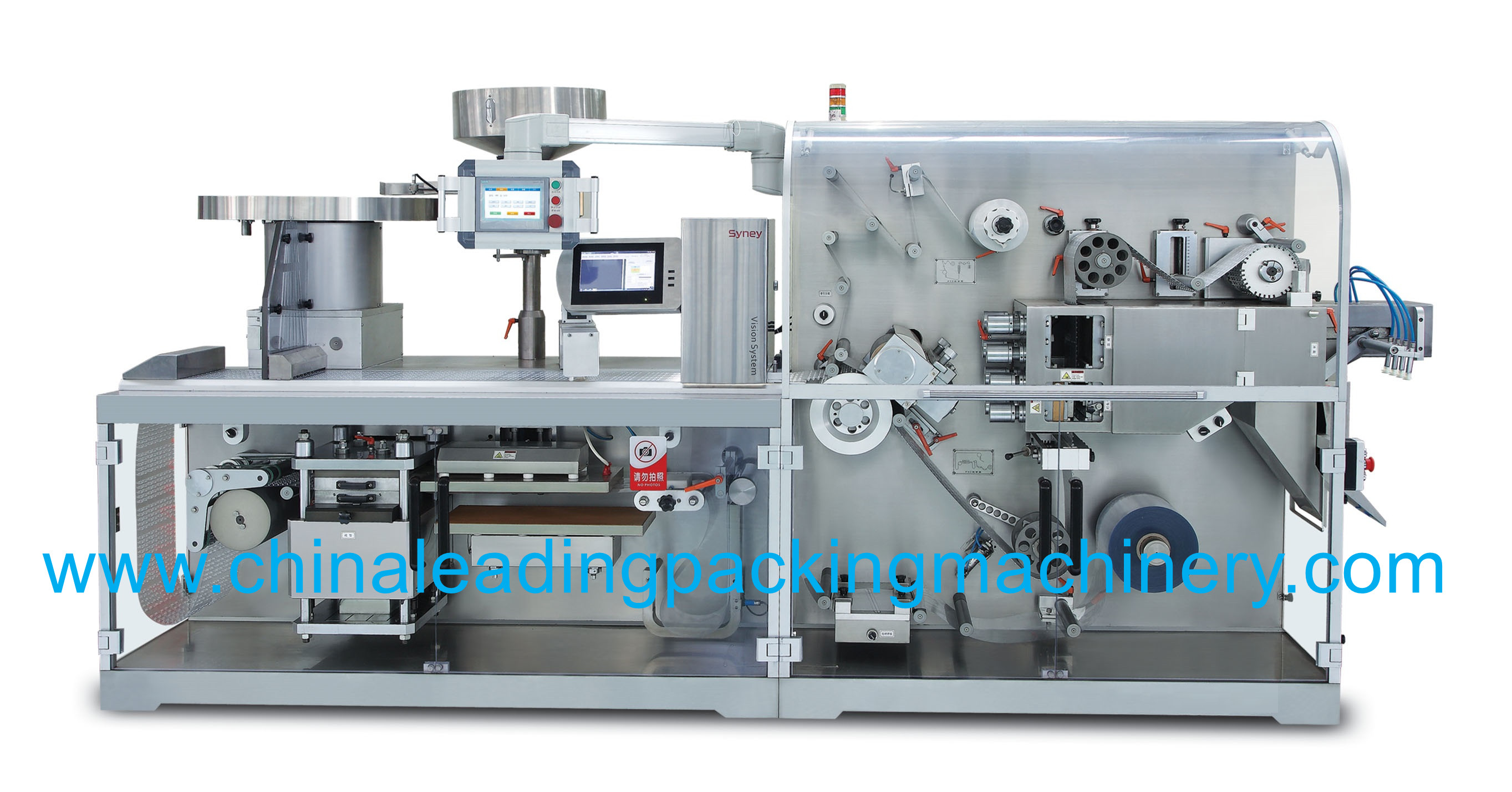

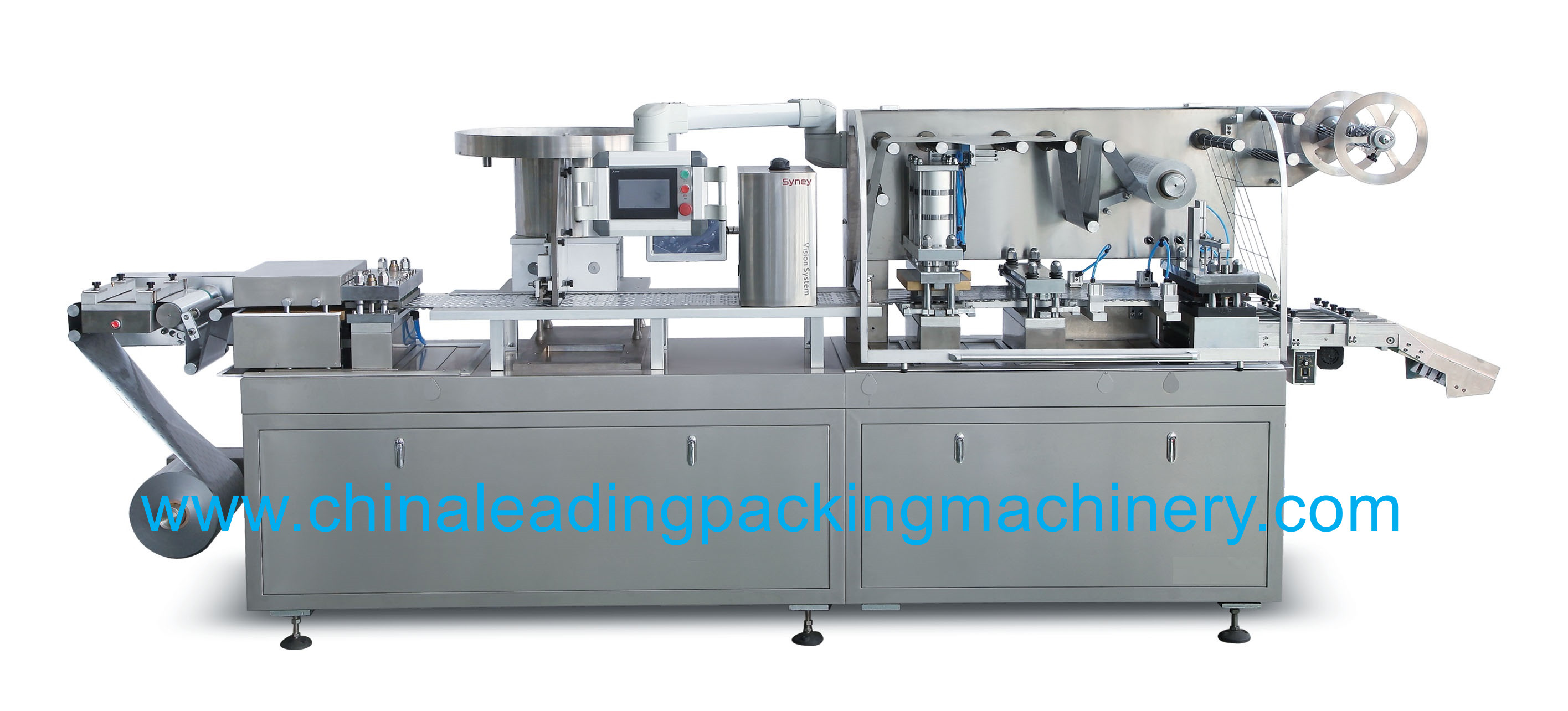

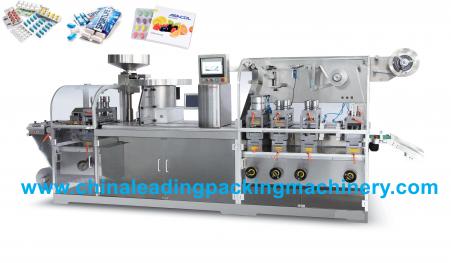

See some of the series of machines we make below.
