Six Nozzles Servo Driven Piston Filling Capping Production Line for Cream, Paste, Liquid including E Cigarette, Juice, etc.

We have linear 6 nozzles filler and double work station turn table filler, please contact us with your need, we can recommend machine accordingly. The video we showed in the next web tab is for double work station turn table filler.

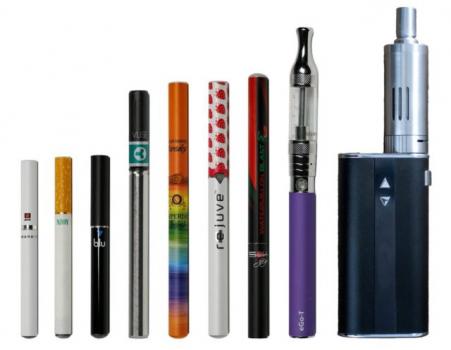

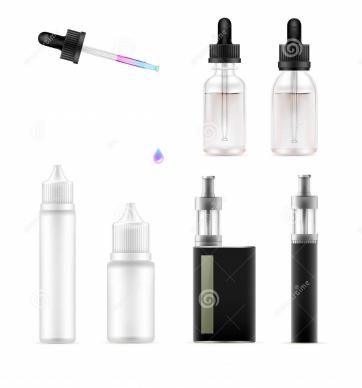

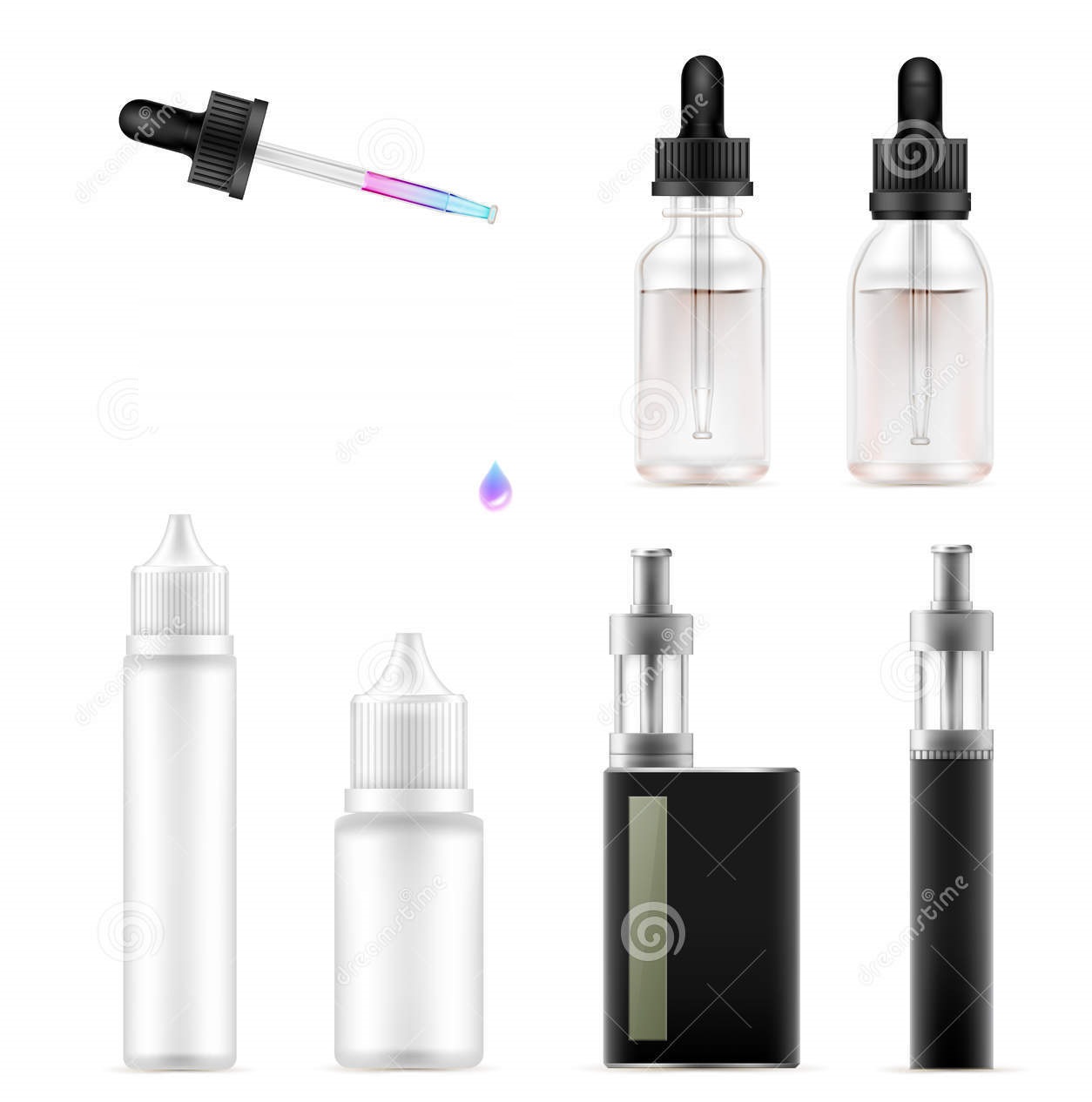

See some sample photos we can fill below, the container types and sizes are not limited as below shown:

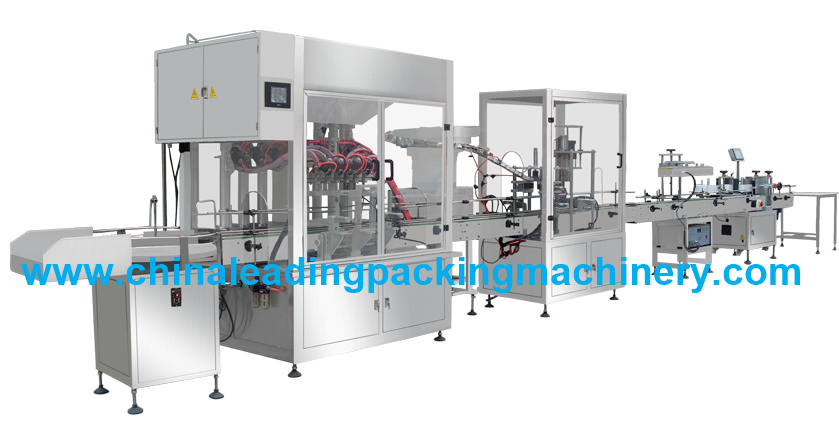

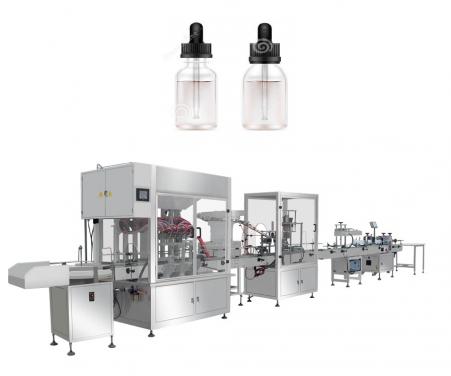

This production line is composed of six nozzles filler, cap presser and capper. This filling and capping production line is suitable for filling liquid and semi-fluid materials such as E-cigarette, juice, soy sauce, oyster sauce, tomato sauce, chili sauce, peanut butter, honey, syrup, oil, similar products are also applicable for filling. Contact us with your product and packing container, we will offer you ideal solution of production line.

Technical parameters:

1.    Number of filling heads: 6 nozzles, the nozzle quantity can be made according to client's need for the production output purpose.

2.    Filling capacity: 100-3000 (milliliter) adjustable (the filling volume can be customized according to the customer’s requirements)

3.    Filling Form: Servo Motor Driven Piston Filling

4.    Theoretical filling speed: 20-80 bottles per minute depending on the filling volume and the filling nozzle quantity, the filling nozzle quantity can be decided by the client according to his own need on production speed.

5.    Filling accuracy: ±1%

6.    Conveying speed: 5-15 meters/minute

7.    Whole machine power: 500W/220V AC single-phase or the voltage can be made according to client’s need.

8.    Program Control: Imported PLC with Touch Screen Man-machine Interface

9.    The machine can be customized to client’s need.

Machine features:

1.    High-efficiency packaging and minimal product-loss filling system

A.   The filling system adopts servo motor speed synchronous tracking drive, filling measurement uses PLC automatic processing system. It not only improves the production efficiency, but also simplifies the operation.

B.   The filling volume adjustment can be done by inputting data directly on the touch screen without need to change or adjust any parts of the machine, much better than traditional piston filler.

C.   So it is very convenient for client use, now this servo motor driven piston filler is very popular with our clients for its high efficiency and convenience in operation and adjusting filling volume.

D. It is more accurate in filling volume than the traditional piston filler. The traditional piston filler’s filling accuracy can be affected by the compressed air supply consistency, while the servo motor driven piston filler is controlled by servo motor which is electrical driven, so it is more stable in filling accuracy.

2. Perfect packaging appearance - by controlling the submersible filling process, filling head filling in the container. At the same time, use POB full sealing head plugging filling nozzle to seal, never drip, no pollution.

3. Upgrading of machine --- powerful HMI (human-machine interaction) function can easily solve the adjustment of filling volume, measurement error and filling speed. The special filling volume adjustment memory storage function of the machine can automatically store different filling volumes done. The user can store the filling product and volume in the touch screen memory system, when filling of a certain product and a certain filling volume that is stored, he can select from the memory library in the touch screen without need to re-adjust the machine.

4. The product is designed and manufactured according to GMP health protection grade. It is suitable for filling oil, peanut butter, chili sauce and concentrated fruit juice.

5. The product filling circuit in the machine is very convenient for cleaning.

6. Using advanced man-machine interface, the operation data can be adjusted and stored, and the fault can be displayed.

7. Servo drive, man-machine interface setting filling volume, high-precision filling, easy to use;

8. Precision stainless steel piston cylinder processing technology to ensure that filling accuracy and consistency, so that the sealing ring can be used for a long time without wearing out.

9. The material contact part is made of stainless steel 316L, which is corrosion-resistant and fully conforms to food hygiene standards.

10. Anti-foaming, double anti-drip and leakage mechanism.

We have different series of machines suitable for your packing need and production speed need, we did not put them all on website, please contact us with your packing needs, we will recommend accordingly and send you machine specification, video and photo for your reference.

As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
