We manufacture different series of blister packing machines to pack such as capsules and tablets, candy, chewing gum, pill, soft gel, fruit jam, chocolate, cream, pudding, yogurt, syringes, ampoule bottles and medical products, food, hardwares, etc.

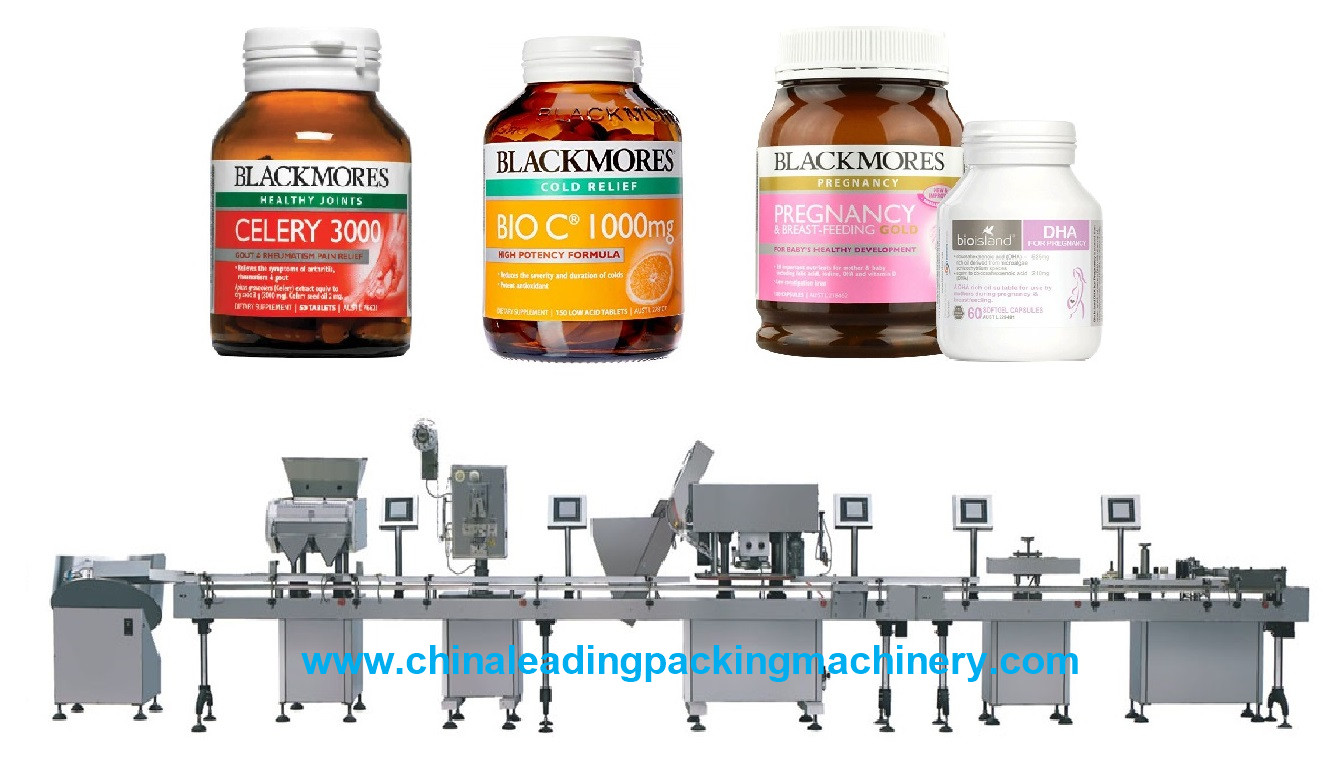

There are two types of packing methods, one is blister packing, another is counting and filling into bottles, cans or tins or any other packages, if the clients need counting and filling into all kinds of containers, please click the below photo to go to the corresponding page for the machine you need. If the client needs the blister packing method, please read below information in this webpage for your reference. Or you can contact us by email, we will recommend suitable packing machines for your need, we can also custom make the machine for your need.

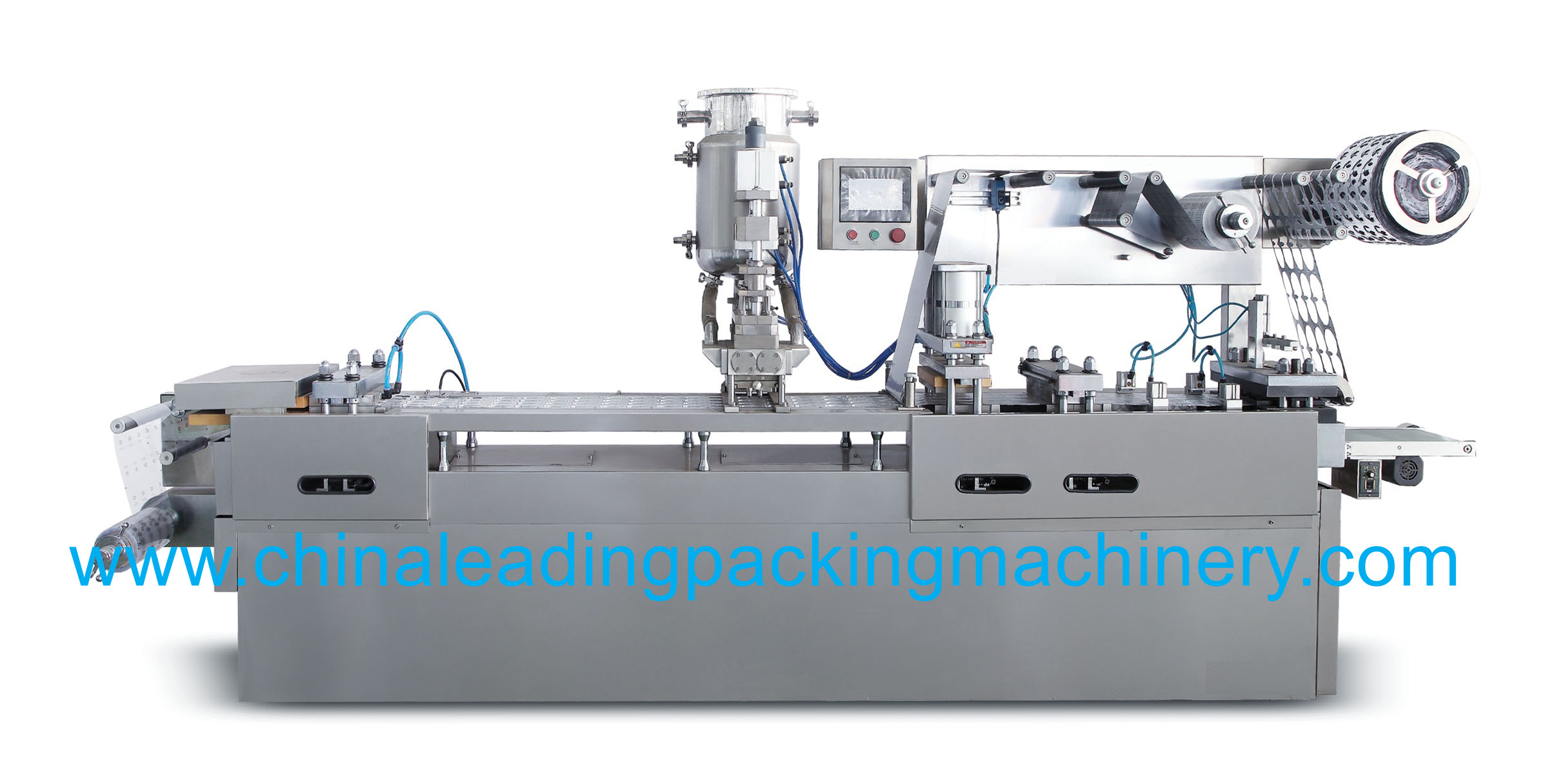

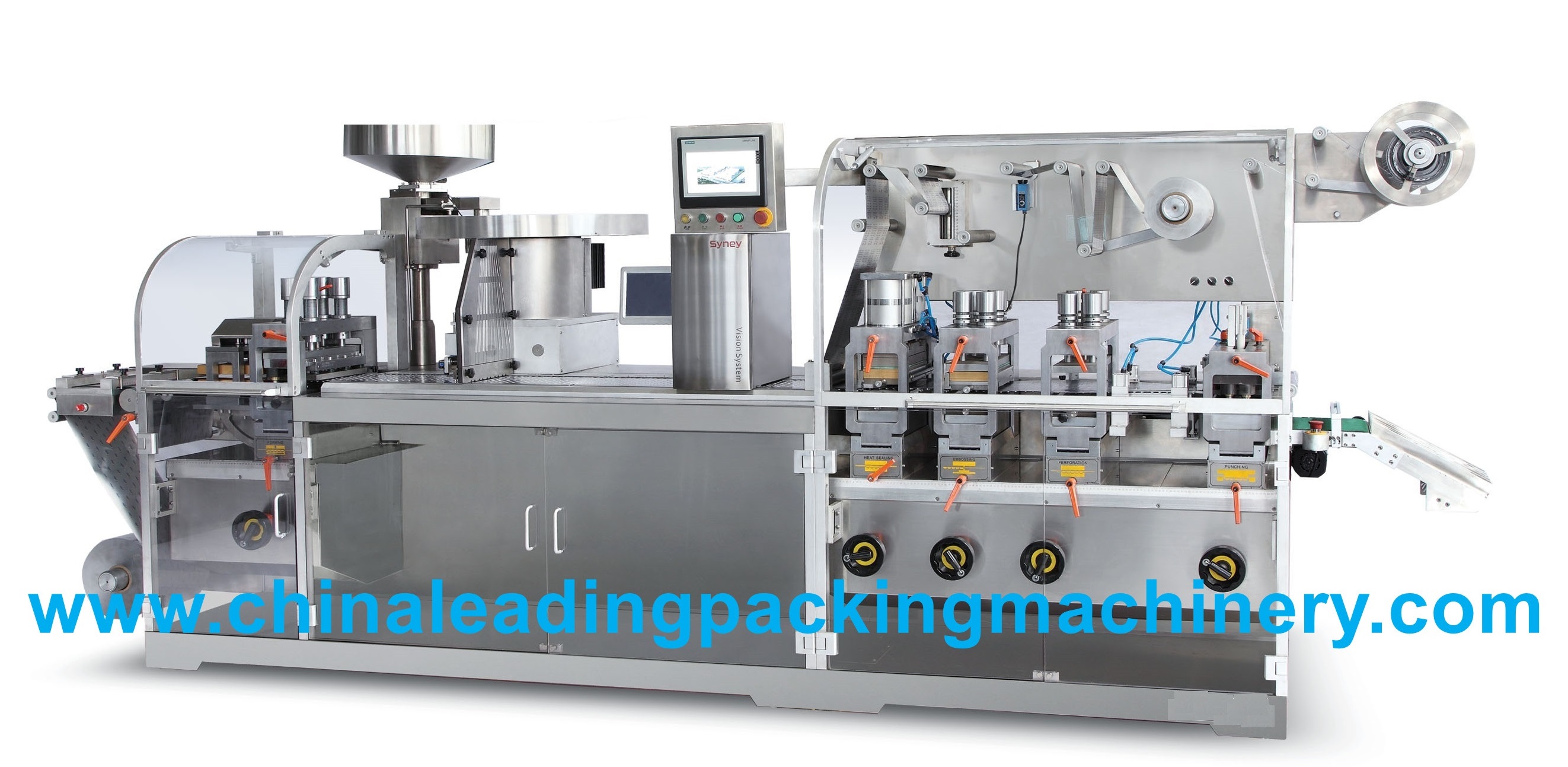

2. Pictures of machine
See some sample photos we can pack below, the products types that can be packed are not limited as below shown:
3. Machine specification and features:
A. Application
1).This machine is applied to Aluminium to PVC and Aluminium to Aluminium film blister packing of medicines, for example sealed blister packing of capsules and tablets of various specifications.
2).Applied to sealed blister packing of various syringes, ampoule bottles and medical products.
3).Applied to sealed blister packing of food, electronic parts, hardware products, etc.
B. Main features
1).Main drive: main motor located at the back of machine ,easy for maintenance. Synchronous belt drive instead of chain belt drive to reduce oil stain.
2).Guide rail installation method: guide rail of the cabinet is installed in cantilever way .It is convenient for the operator to remove the dropped medicine.
3).Mould base installation and adjustment: adopt lathe type guide rail and pinion and rack adjustment way. with position indicator and scale ruler for mould position adjustment.
4).All moulds including forming mould, heat-sealing mould, batch number emboss printing mould, punching mould can be orientation-guide pushed into its position by hand and mould handle rocked to finish mould change fast with no need wrench or other tools.
5).Adopt air shaft to install PVC material and aluminum foil, adopt PVC connection device to change roll material more faster.
6).PVC loading adopt roller trace to avoid PVC material being over-stretched during material pulling.

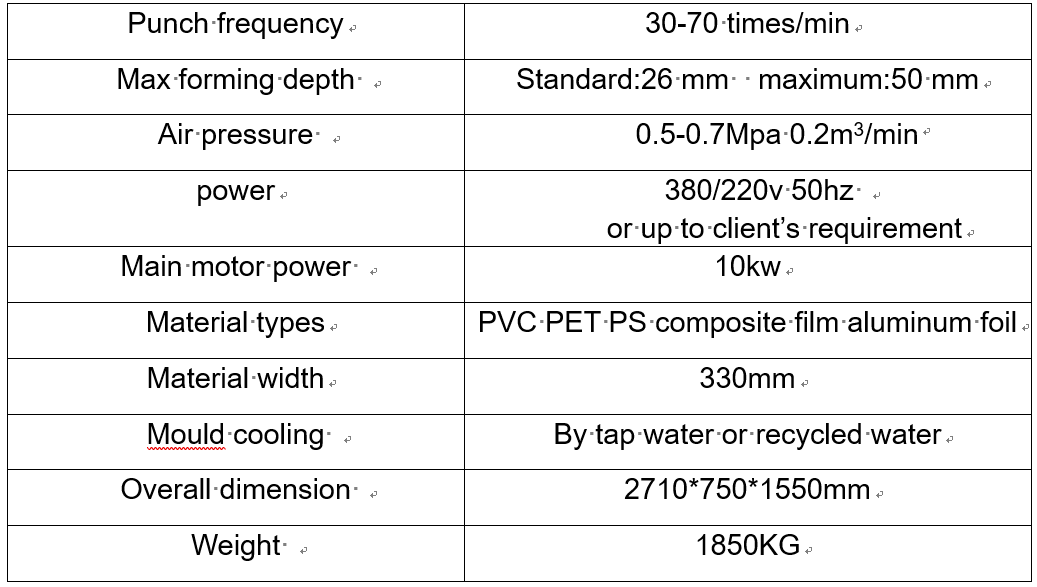

C. Main technical parameter
Machine Running Video:
Related food packing machines
Potato chip pouch filling line
Protein powder filling line
Honey/oil /Juice/Syrup fast filling line
Nut filling line
Chewing gum/candy/fruit jam/jelly Blister packing line
As one of the leading comprehensive packing and processing machinery manufacturer in China, we have most of the machines you need, on the website we only upload part of our machines for clients’ reference. For clients with detailed packing solution, please contact us by email, our enthusiastic sales and engineers team will come up with ideal solution for your product and with the most reasonable price, within your budget. We will also send you the machine’s specification, photo and running video by email for your reference, you can get what you need here one stop. Email us at leadingpackingmachinery@gmail.com
Cream blister packing machine for packing such as fruit jam, chocolate, cream, pudding, yogurt, etc.

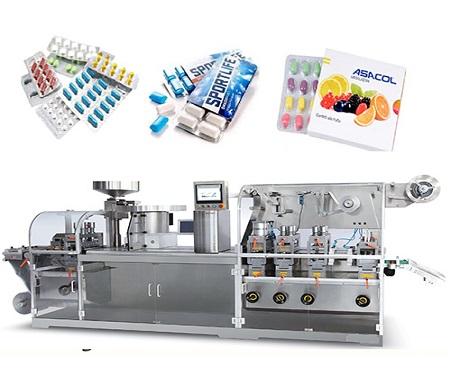

Machine photo:
Blister packing machine can pack various types of product, such as below photos.
Machine’s specification:
1). Application
This machine is applied to blister filling and sealing packing of melted fruit jam, chocolate, cream and other foods. Full process is automatic, from blister forming to liquid filling, composite film sealing and punching to final products, which greatly reduces labor costs.
2). Main feature
1).Adopt full set of Mitsubishi HMI, PLC and servo control system. With easier operation, higher precision and lower failure rate.
2)Optical tracking system adopt imported three color sensor, which can sense all colors and output strong signal. Make sure to use color film, which can align with bottom film’s forming area.
3)Feeder adopts stainless steel 316, with jacket layer for heating function, and with removable piston for easy cleaning.
4)With safety cover made of food-grade 304/2B stainless steel and aluminum.
5)Pneumatic parts adopt original AirTac solenoid valves and cylinders.
6)Optional with coding system.

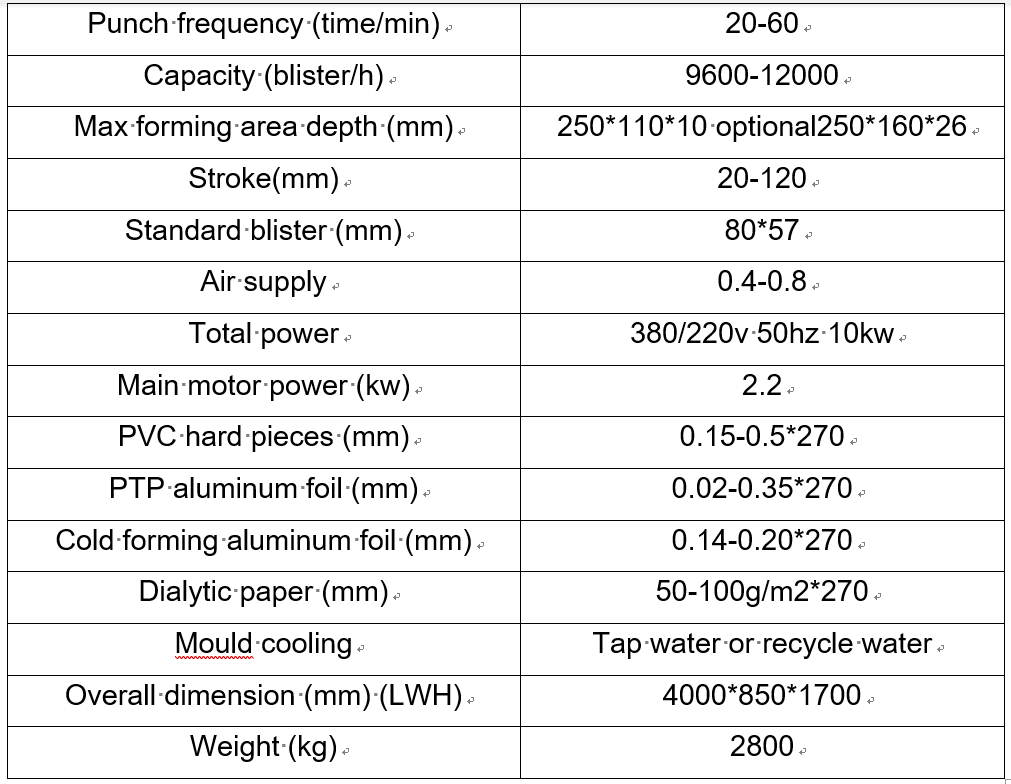

3). Main technical parameter
Machine Running Video:
Related food packing machines
Potato chip pouch filling line
Protein powder filling line
Honey/oil /Juice/Syrup fast filling line
Nut filling line
Chewing gum/candy/fruit jam/jelly Blister packing line
